ECW-F4473 Series

Catalog

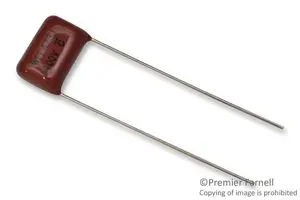

CAP FILM 0.047UF 3% 400VDC RAD

Part	Mounting Type	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Termination	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Voltage Rating - DC	Tolerance	Voltage Rating - AC
Panasonic Electronic Components ECW-F4473RHL	Through Hole	Polypropylene (PP) Metallized	0.492 " 12.5 mm	0.244 in 6.2 mm	PC Pins	0.295 in	7.5 mm	-40 C	105 ░C	Radial	14 mm	0.551 in	High Frequency Switching	400 V	3 %
Panasonic Electronic Components ECW-F4473HLB	Through Hole	Polypropylene (PP) Metallized	0.492 " 12.5 mm	0.244 in 6.2 mm	PC Pins	0.295 in	7.5 mm	-40 C	105 ░C	Radial	14 mm	0.551 in	High Frequency Switching	400 V	3 %
Panasonic Electronic Components ECW-F4473HL	Through Hole	Polypropylene (PP) Metallized	0.492 " 12.5 mm	0.244 in 6.2 mm	PC Pins	0.394 in	10 mm	-40 C	105 ░C	Radial	10.5 mm	0.413 "	High Frequency Switching	400 V	3 %	141 V
Panasonic Electronic Components ECW-F4473JL	Through Hole	Polypropylene (PP) Metallized	0.492 " 12.5 mm	0.244 in 6.2 mm	PC Pins	0.394 in	10 mm	-40 C	105 ░C	Radial	10.5 mm	0.413 "	High Frequency Switching	400 V	5 %	141 V
