PV3F2 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPDT 2A 48V

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Actuator Marking	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type	Termination Style	Switch Function	Current Rating (Amps)	Illumination Type, Color	Color - Actuator/Cap	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Actuator Type	Mounting Type	Circuit
E-Switch PV3F2B0SS-343	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal Illuminated	Solder Lug	On-Mom	2 A	Blue LED	Silver	6 VDC	16 mm	Button Flush Round	Panel Mount Front	SPDT

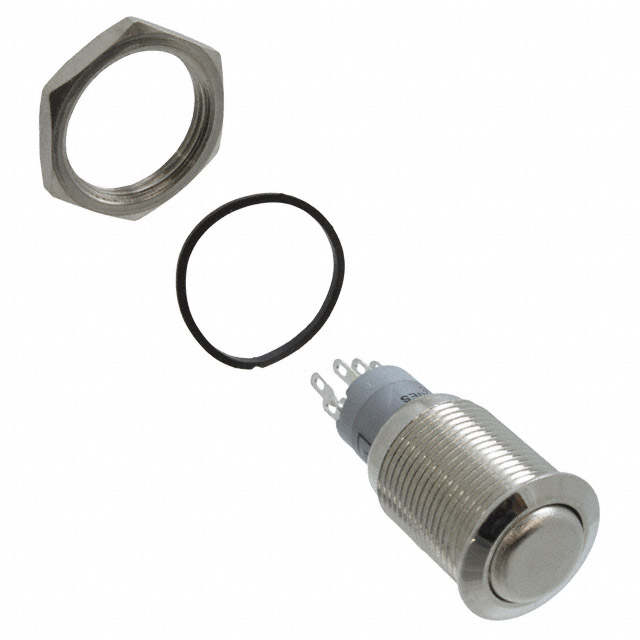

E-Switch PV3F2H0NN	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal	Solder Lug	On-Mom	2 A		Silver		16 mm	Button Flush Round	Panel Mount Front	DPDT
E-Switch PV3F2B011-343	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal Illuminated	Solder Lug	On-Mom	2 A	Blue LED	Black	6 VDC	16 mm	Button Flush Round	Panel Mount Front	SPDT
E-Switch PV3F2H0NN-214	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal Illuminated	Solder Lug	On-Mom	2 A	LED Red	Silver	12 VDC	16 mm	Button Flush Round	Panel Mount Front	DPDT
E-Switch PV3F2B0BB-235	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal Illuminated	Solder Lug	On-Mom	2 A	Green LED	Silver	24 V	16 mm	Button Flush Round	Panel Mount Front	SPDT
E-Switch PV3F2B0SS	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal	Solder Lug	On-Mom	2 A		Silver		16 mm	Button Flush Round	Panel Mount Front	SPDT
E-Switch PV3F2H0SS-335	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal Illuminated	Solder Lug	On-Mom	2 A	Green LED	Silver	24 V	16 mm	Button Flush Round	Panel Mount Front	DPDT
E-Switch PV3F2B0NN	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal	Solder Lug	On-Mom	2 A		Silver		16 mm	Button Flush Round	Panel Mount Front	SPDT
E-Switch PV3F2H011-304	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal Illuminated	Solder Lug	On-Mom	2 A	LED White	Black	12 VDC	16 mm	Button Flush Round	Panel Mount Front	DPDT

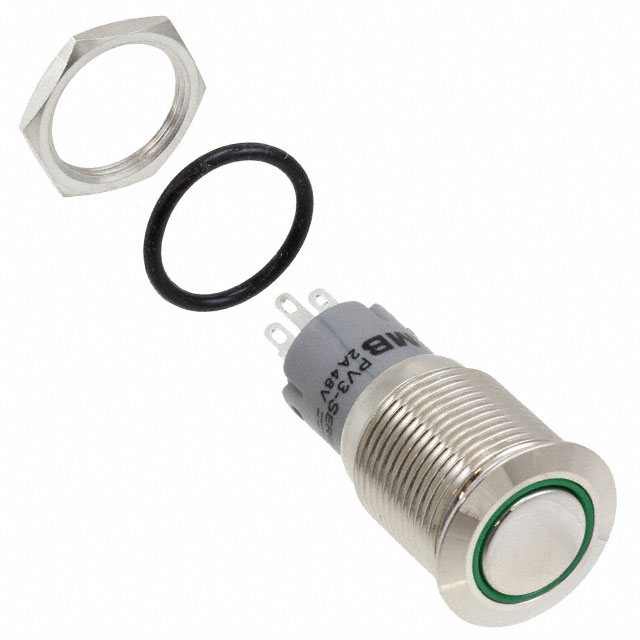

E-Switch PV3F2H0NN-334	200000 Cycles	50000 Cycles	48 V	No Marking	IP40	55 °C	-20 ░C	Anti-Vandal Illuminated	Solder Lug	On-Mom	2 A	Green LED	Silver	12 VDC	16 mm	Button Flush Round	Panel Mount Front	DPDT
