109P0605 Series

Catalog

AXIAL FAN, 60MM, 5VDC, 10.6CFM, 25DBA

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Current Rating (Amps)	Material - Frame	Width [y]	Voltage - Rated	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Air Flow	Air Flow	Power (Watts)	Approval Agency	Bearing Type	Noise	Size / Dimension [z]	Size / Dimension [x]	RPM	Fan Type	Termination	Features

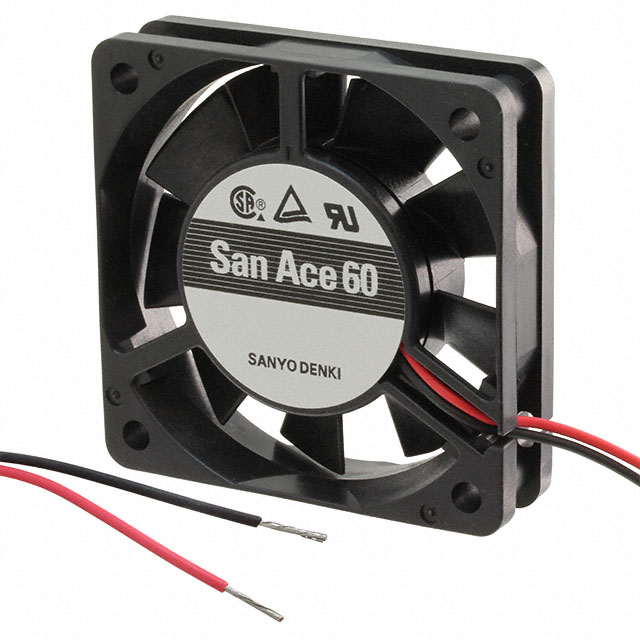

Sanyo Denki America Inc. 109P0605M702	5.5 V	4.5 V	Plastic	150 mA	Plastic	15 mm	5 V	0.133 lb	60.33 g	-20 ░C	70 °C	0.091 in H2O	22.7 Pa	10.6 CFM	0.297 m³/min	0.75 W	CSA TUV UL	Ball	25 dB(A)	60 mm	60 mm	3100 RPM	Tubeaxial	2 Wire Leads
Sanyo Denki America Inc. 109P0605H702	5.5 V	4.5 V	Plastic	0.26 A	Plastic	15 mm	5 V	0.133 lb	60.33 g	-20 ░C	70 °C	0.153 in H2O	38.2 Pa	14.1 CFM	0.395 m³/min	1.3 W	CSA TUV UL	Ball	32 dB	60 mm	60 mm	4100 RPM	Tubeaxial	2 Wire Leads

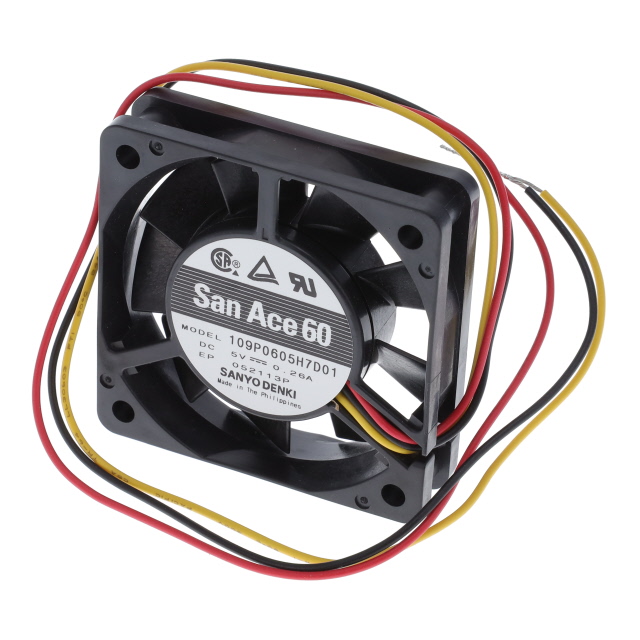

Sanyo Denki America Inc. 109P0605H7D01	5.5 V	4.5 V	Plastic	0.26 A	Plastic	15 mm	5 V	0.133 lb	60.33 g	-20 ░C	70 °C	0.153 in H2O	38.2 Pa	14.1 CFM	0.395 m³/min	1.3 W	CSA TUV UL	Ball	32 dB	60 mm	60 mm	4100 RPM	Tubeaxial	3 Wire Leads	Locked Rotor Sensor

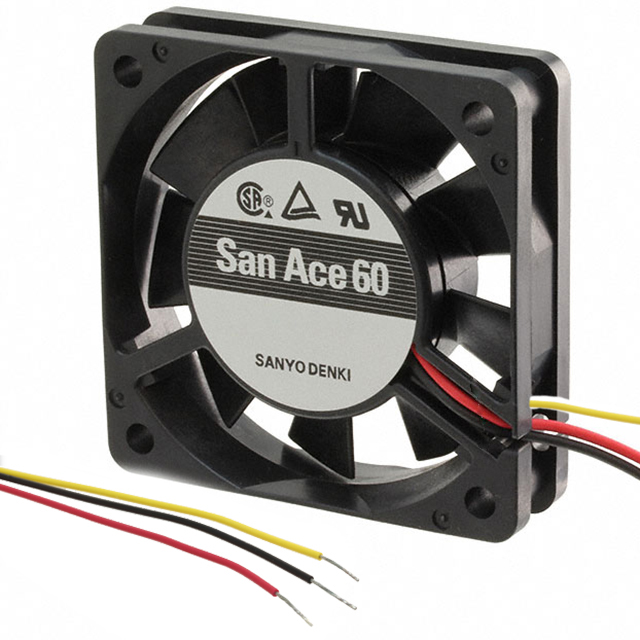

Sanyo Denki America Inc. 109P0605H701	5.5 V	4.5 V	Plastic	0.26 A	Plastic	15 mm	5 V	0.133 lb	60.33 g	-20 ░C	70 °C	0.153 in H2O	38.2 Pa	14.1 CFM	0.395 m³/min	1.3 W	CSA TUV UL	Ball	32 dB	60 mm	60 mm	4100 RPM	Tubeaxial	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
