CC56-11 Series

Catalog

DISP 7SEG 0.56" QUAD YLW 36DIP

Part	Package / Case	Current - Test	Common Pin	Display Type	Number of Characters	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Millicandela Rating	Wavelength - Peak	Package / Case
Kingbright CC56-11YWA	15.24 36-DIP Module (0.600	20 mA	Common Cathode	7-Segment Clock	4	2.1 V	0.56 in	14.22 mm	75 mw	Yellow	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	6.5 mcd	590 nm
Kingbright CC56-11CGKWA	36-DIP	20 mA	Common Cathode	7-Segment Clock	4	2.1 V	0.56 in	14.22 mm	75 mw	Green	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	35 mcd		0.6 in 15.24 mm
Kingbright CC56-11SURKWA	36-DIP	20 mA	Common Cathode	7-Segment Clock	4	1.95 V	0.56 in	14.22 mm	75 mw	Red	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	72 mcd	645 nm	0.6 in 15.24 mm
Kingbright CC56-11EWA	15.24 36-DIP Module (0.600	20 mA	Common Cathode	7-Segment Clock	4	2 V	0.56 in	14.22 mm	75 mw	Red	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	5.8 mcd	627 nm
Kingbright CC56-11SRWA	15.24 36-DIP Module (0.600	20 mA	Common Cathode	7-Segment Clock	4	1.85 V	0.56 in	14.22 mm	75 mw	Red	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	40 mcd	660 nm

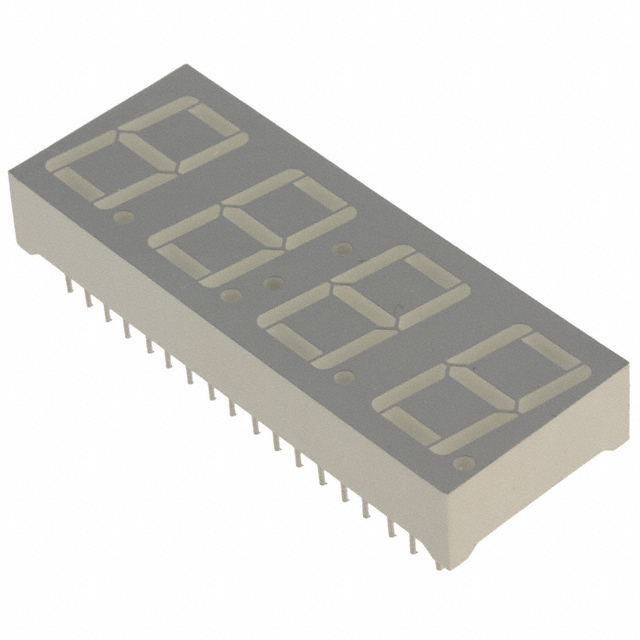

Kingbright CC56-11GWA	15.24 36-DIP Module (0.600	20 mA	Common Cathode	7-Segment Clock	4	2.2 V	0.56 in	14.22 mm	62.5 mW	Green	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	11 mcd	565 nm
