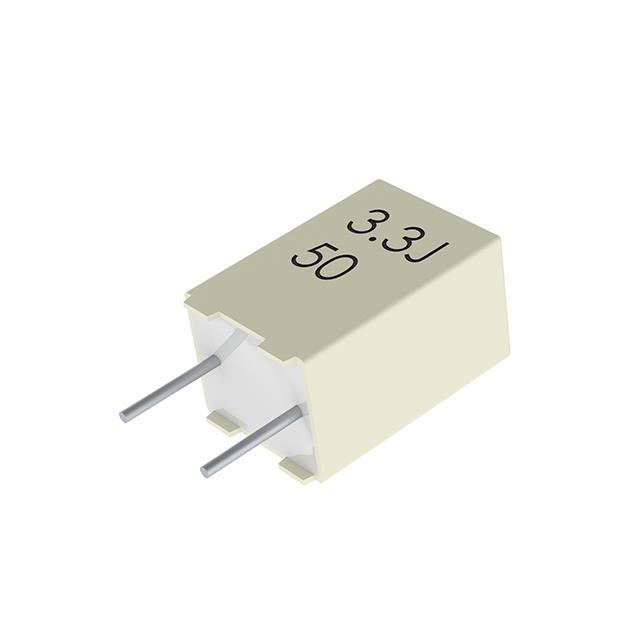

R82 Series

Manufacturer: KEMET

Catalog

FILM CAPACITORS 100V 0.018 UF 105C 5% 2 PIN LS=5 MM AEC-Q200

Part	Ratings	Package / Case	Applications	Dielectric Material	Lead Spacing	Lead Spacing	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Termination	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [z]	Size / Dimension [y]
KEMET R82EC2180DQ50J
KEMET R82EC3470DQ70J	AEC-Q200	Radial	Automotive	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.197 "	5 mm	0.47 µF	-55 C	105 ░C	Through Hole	63 V	100 V	9.6 mm	0.378 "	5 %	PC Pins	7.2 mm	0.283 "	4.5 mm	0.177 "
KEMET R82MC1680Z350J	AEC-Q200	Radial	Automotive	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.197 "	5 mm	6800 pF	-55 C	105 ░C	Through Hole	200 V	400 V	7.6 mm	0.299 in	5 %	PC Pins	7.2 mm	0.283 "	3.5 mm	0.138 in
KEMET R82IC2220DQ60M	AEC-Q200	Radial	Automotive	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.197 "	5 mm	0.022 µF	-55 C	105 ░C	Through Hole	140 V	250 V			20 %	PC Pins	7.2 mm	0.283 "	2.5 mm	0.098 in	6.6 mm	0.26 in
KEMET R82EC2680ZB60K
KEMET R82EC1220CK50J	AEC-Q200	Radial	Automotive	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.197 "	5 mm	2200 pF	-55 C	105 ░C	Through Hole	63 V	100 V			5 %	PC Pins	7.2 mm	0.283 "	2.5 mm	0.098 in	6.6 mm	0.26 in
KEMET R82IC3100AA55K	AEC-Q200	Radial	Automotive	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.197 "	5 mm	100000 pF	-55 C	105 ░C	Through Hole	160 V	250 V	0.398 in		10 %	PC Pins	7.2 mm	0.283 "		0.197 "			10.1 mm	5 mm
KEMET R82EC3560DQ70K
KEMET R82IC2330Z350K	AEC-Q200	Radial	Automotive	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.197 "	5 mm	0.033 çF	-55 C	105 ░C	Through Hole	160 V	250 V	7.6 mm	0.299 in	10 %	PC Pins	7.2 mm	0.283 "	3.5 mm	0.138 in
KEMET R82MC1330Z350K	AEC-Q200	Radial	Automotive	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	0.197 "	5 mm	0.0033 µF	-55 C	105 ░C	Through Hole	200 V	400 V			10 %	PC Pins	7.2 mm	0.283 "	2.5 mm	0.098 in	6.6 mm	0.26 in
