053314 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 30POS 2MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Material	Contact Finish - Post	Number of Rows	Mounting Type	Contact Length - Post	Contact Length - Post	Fastening Type	Shrouding	Contact Type	Style	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Insulation Material	Termination	Number of Positions	Features	Connector Type

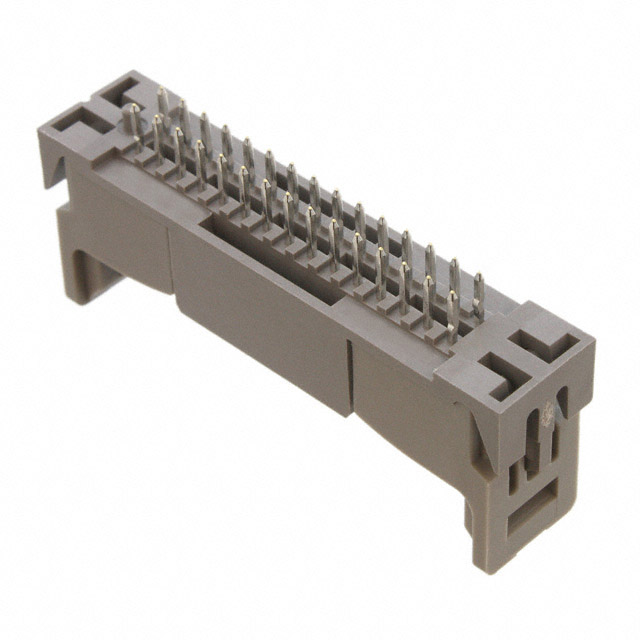

Molex 0533143065	40 µin	1.02 µm	Gray	Brass	Tin	2	Through Hole	3.5 mm	0.138 in	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	0.098 in	2.5 mm	UL94 V-0	All	0.079 in	2 mm	Square	Polyamide (PA66) Nylon 6/6 Glass Filled	Solder	30	Board Guide	Header
Molex 0533144065	40 µin	1.02 µm	Gray	Brass	Tin	2	Through Hole	3.5 mm	0.138 in	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	0.098 in	2.5 mm	UL94 V-0	All	0.079 in	2 mm	Square	Polyamide (PA66) Nylon 6/6 Glass Filled	Solder	40	Board Guide	Header

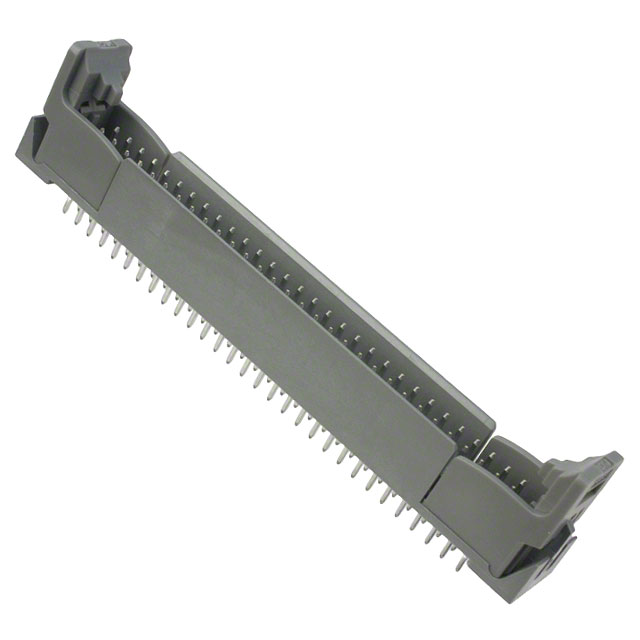

Molex 0533146065	40 µin	1.02 µm	Gray	Brass	Tin	2	Through Hole	3.5 mm	0.138 in	Latch Lock/Eject Hooks	Shrouded - 4 Wall	Male Pin	Board to Cable/Wire	0.098 in	2.5 mm	UL94 V-0	All	0.079 in	2 mm	Square	Polyamide (PA66) Nylon 6/6 Glass Filled	Solder	60	Board Guide	Header
