RT9169 Series

Catalog

IC REG LIN 3.3V 100MA SOT23-3L

Part	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Number of Regulators	Protection Features	Output Configuration	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Supplier Device Package	Voltage Dropout (Max) [Max]	Current - Output	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	PSRR	Control Features	Voltage - Output (Min/Fixed) [Min]
Richtek USA Inc. RT9169-33GVL	7 µA	3.3 V	1	Over Current	Positive	Surface Mount	6 V	SC-59 SOT-23-3 TO-236-3	SOT-23-3L	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB
Richtek USA Inc. RT9169H-12GB	7 µA	1.2 V	1	Over Current	Positive	Surface Mount	6 V	SC-74A SOT-753	SOT-23-5	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB	Enable

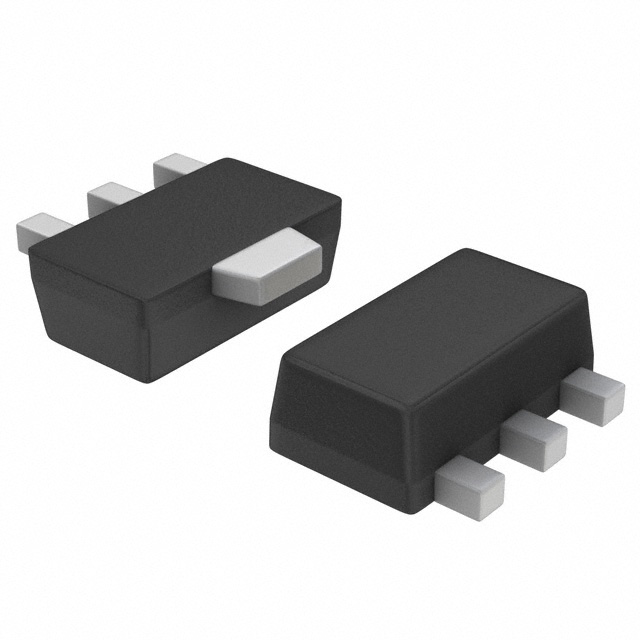

Richtek USA Inc. RT9169-30GX	7 µA	3 V	1	Over Current	Positive	Surface Mount	6 V	TO-243AA	SOT-89-3	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB
Richtek USA Inc. RT9169H-28GB	7 µA	2.8 V	1	Over Current	Positive	Surface Mount	6 V	SC-74A SOT-753	SOT-23-5	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB	Enable
Richtek USA Inc. RT9169-15GVL	7 µA	1.5 V	1	Over Current	Positive	Surface Mount	6 V	SC-59 SOT-23-3 TO-236-3	SOT-23-3L	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB
Richtek USA Inc. RT9169-30GV	7 µA	3 V	1	Over Current	Positive	Surface Mount	6 V	SC-59 SOT-23-3 TO-236-3	SOT-23-3	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB
Richtek USA Inc. RT9169H-18GB	7 µA	1.8 V	1	Over Current	Positive	Surface Mount	6 V	SC-74A SOT-753	SOT-23-5	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB	Enable
Richtek USA Inc. RT9169-12GB	7 µA	1.2 V	1	Over Current	Positive	Surface Mount	6 V	SC-74A SOT-753	SOT-23-5	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB
Richtek USA Inc. RT9169-33GV	7 µA	3.3 V	1	Over Current	Positive	Surface Mount	6 V	SC-59 SOT-23-3 TO-236-3	SOT-23-3	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB
Richtek USA Inc. RT9169-26GB	7 µA		1	Over Current	Positive	Surface Mount	6 V	SC-74A SOT-753	SOT-23-5	0.6 V	100 mA	10 µA	85 C	-40 ¯C	30 dB		2.6 V
