1NT01L Series

Catalog

THERMOSTAT 45DEG C SPST-NC CYL

Part	Switching Cycles	Current Rating - AC	Mounting Type	Circuit	Termination Style	Tolerance	Tolerance	Switching Temperature	Switching Temperature	Package / Case	Reset Temperature	Reset Temperature	Tolerance [Min]
Sensata Technologies 1NT01L-8413	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	3 °C	5.5 °F	45 °C	45 °C	Cylinder with Mounting Flange	25 °C	77 °F
Sensata Technologies 1NT01L-7939	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	3 °C	5.4 °F	80 °C	176 °F	Cylinder with Mounting Flange	69 °C	156.2 °F
Sensata Technologies 1NT01L-7949	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	4 °C	7.2 °F	140 °C	140 °C	Cylinder with Mounting Flange	126 °C	258.8 °F
Sensata Technologies 1NT01L-8421	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	3 °C	5.5 °F	85 °C	85 °C	Cylinder with Mounting Flange
Sensata Technologies 1NT01L-8425	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	3.5 °C	6.5 °F	105 °C	221 °F	Cylinder with Mounting Flange	-5 °C	23 °F

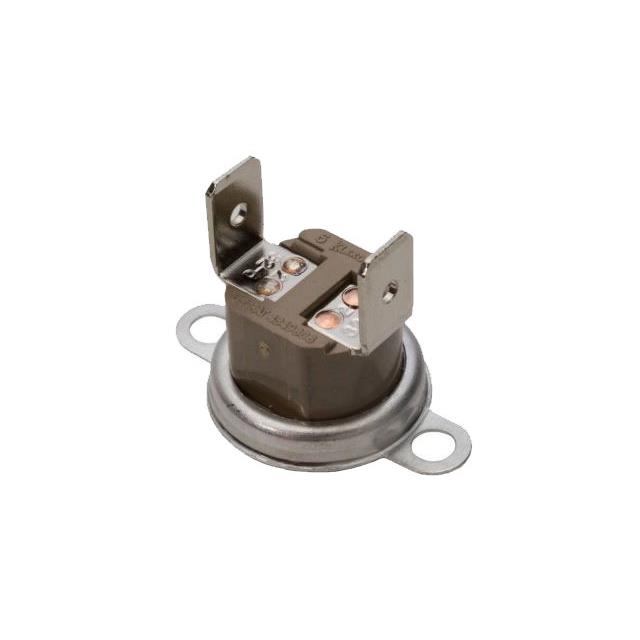

Sensata Technologies 1NT01L-7953	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect			180 °C	356 °F	Cylinder with Mounting Flange	158 °C	316.4 °F	5 °C 9 °F

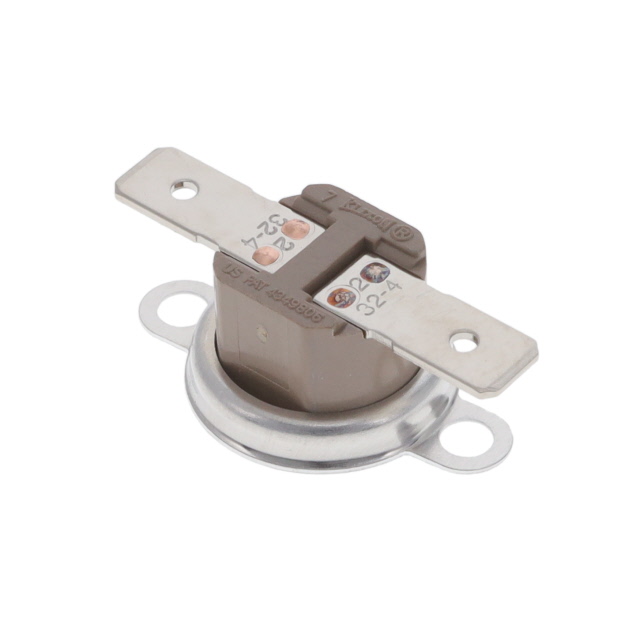

Sensata Technologies 1NT01L-8416	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	3 °C	5.5 °F	60 °C	60 °C	Cylinder with Mounting Flange	104 °F	40 °C
Sensata Technologies 1NT01L-8420	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	3 °C	5.5 °F	80 °C	176 °F	Cylinder with Mounting Flange	60 °C	140 °F
Sensata Technologies 1NT01L-8419	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	3 °C	5.5 °F	75 °C	75 °C	Cylinder with Mounting Flange	55 °C	131 °F

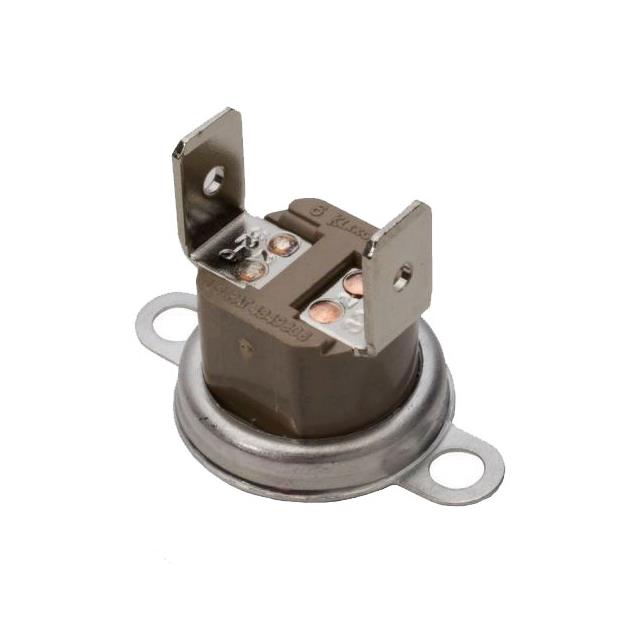

Sensata Technologies 1NT01L-7938	100000	5 A 17 A	Chassis Mount	SPST-NC	Quick Connect	3 °C	5.4 °F	75 °C	75 °C	Cylinder with Mounting Flange	64 °C	147.2 °F
