630-24W Series
Manufacturer: EDAC Inc.
Beta
⌘K

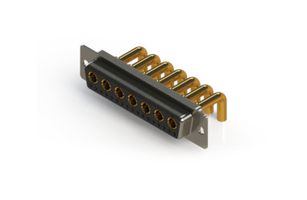

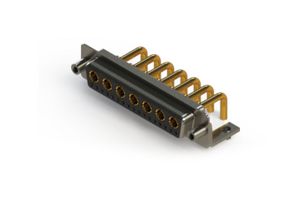

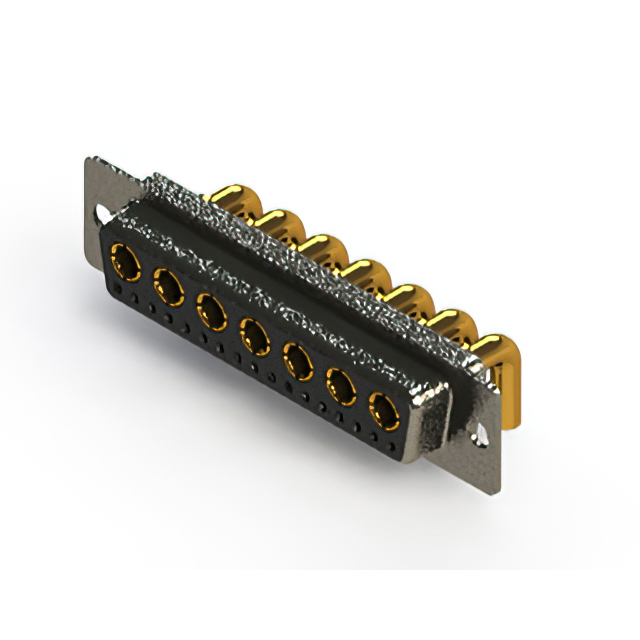

CONN D-SUB RCPT 24POS R/A SLDR
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Number of Positions [custom] | Number of Positions [custom] | Termination | Contact Finish | Connector Style | Number of Rows [custom] | Connector Type | Backset Spacing | Backset Spacing | Flange Feature | Flange Feature | Contact Type | Features | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Contact Finish Thickness | Current Rating (Amps) | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | 7 | 17 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Housing/Shell | 4-40 | Coax Signal | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Housing/Shell (Unthreaded) | Signal and Power | Shielded | 7 | 17 | 5 A 40 A | Flash | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | 4-40 | Signal and Power | Board Lock Mounting Brackets | 7 | 17 | Flash | 20A 5A | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | 4-40 | Signal and Power | Board Lock | 7 | 17 | Flash | 20A 5A | Nickel Plated Steel | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Housing/Shell | 4-40 | Signal and Power | Mounting Brackets | 7 | 17 | 20A 5A | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Housing/Shell (M3) | Signal and Power | Board Lock Mounting Brackets | 7 | 17 | Flash | 10A 5A | Nickel Plated Steel | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Housing/Shell | 4-40 | Signal and Power | Mounting Brackets | 7 | 17 | 5 A 30 A | Flash | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | M3 | Signal and Power | Mounting Brackets | 7 | 17 | Flash | 20A 5A | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Housing/Shell | 4-40 | Signal and Power | Board Lock Mounting Brackets | 7 | 17 | 5 A 40 A | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Black | -55 C | 125 °C | 125 VDC | 5 | D DD | 24W7 | Right Angle Through Hole | UL94 V-0 | Solder | Gold | Combo D-Sub | 2 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Housing/Shell | 4-40 | Signal and Power | Mounting Brackets | 7 | 17 | Flash | 20A 5A | Nickel Plated Steel |
