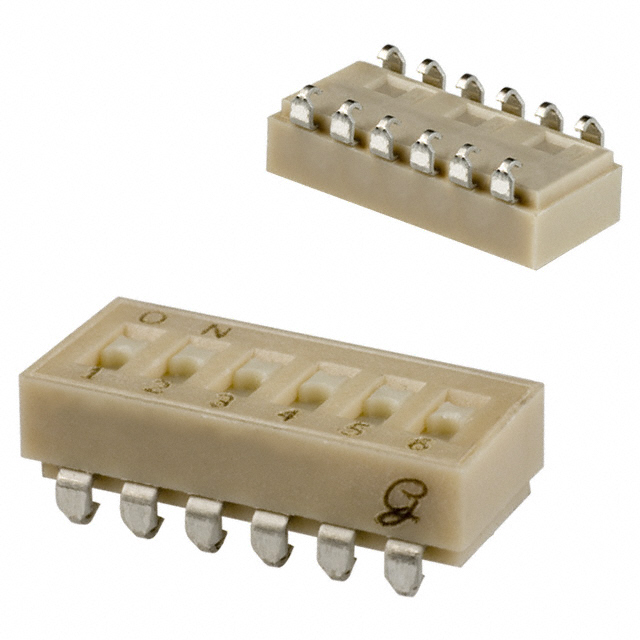

90HBJ06 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Electrical Life | Mechanical Life | Body Material | Length | Length | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Circuit | Height Above Board [z] | Height Above Board [z] | Current Rating (Amps) | Contact Material | Features | Contact Finish | Pitch | Pitch | Actuator Level | Washable | Mounting Type | Voltage Rating | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 2000 Steps | 2000 Cycles | Thermoplastic | 0.67 in | 17.02 mm | J Lead | 85 °C | -40 C | 6 | SPST | 0.22 in | 5.59 mm | 25 mA | Copper Alloy | Tape Seal | Gold | 2.54 mm | 0.1 " | Flush Recessed | Surface Mount | 24 VDC | Slide (Standard) |
