19370240 Series

Manufacturer: HARTING

Catalog

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN® M; HIGH

Part	Lock Location	Housing Material	Housing Color	Housing Finish	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Style	Connector Type	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Features

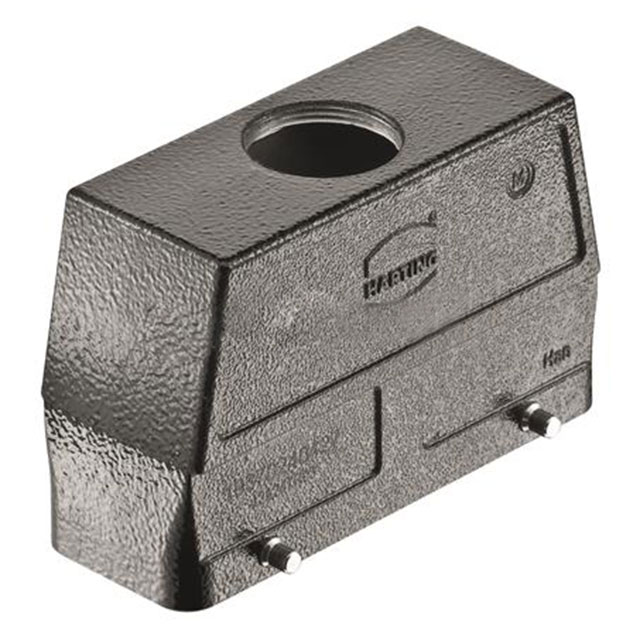

HARTING 19370240428	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Black	Powder Coated	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	Top Entry	Hood	24 B	IP65 - Dust Tight Water Resistant	125 °C	-40 C
HARTING 19370240282	Locking Clip (1) on Hood	Aluminum Die Cast	Black	Powder Coated	57 mm	80.8 mm	3.181 in	144 mm	5.669 in	2.244 "	Side Entry	Base - Box Mount	24 B	IP65 - Dust Tight Water Resistant	125 °C	-40 C	M32	Feed Through

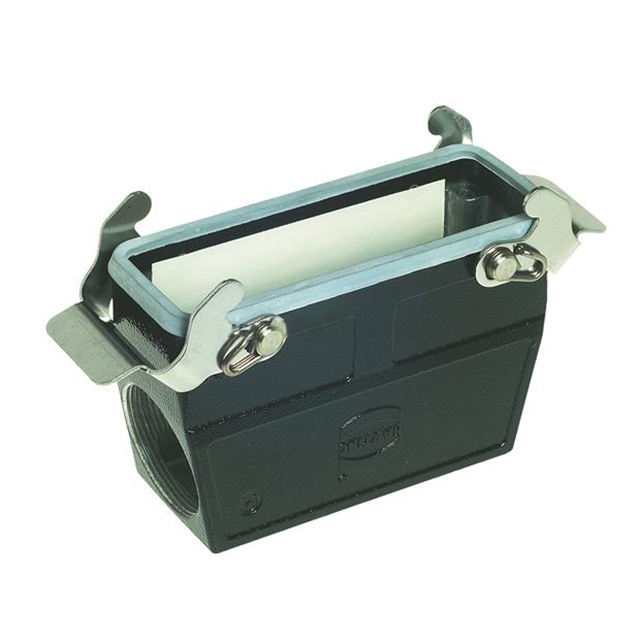

HARTING 19370240733	Locking Clip (2) on Hood Top	Aluminum Die Cast	Black	Powder Coated	43 mm	78.4 mm	3.087 "	120 mm	4.724 in	1.693 "	Side Entry	Hood - Coupling	24 B	IP65 - Dust Tight Water Resistant	125 °C	-40 C		Cable to Cable

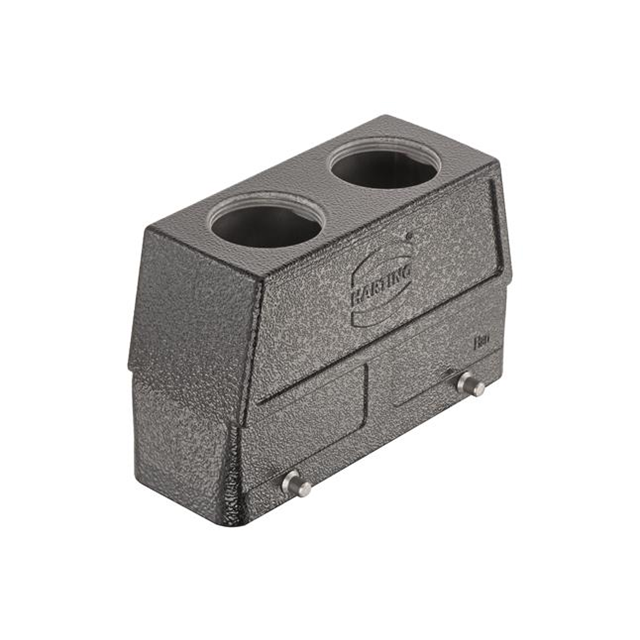

HARTING 19370240466	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Black	Powder Coated							Top Entry Dual	Hood	24 B	IP65 IP66 IP67	125 °C	-40 C	M25

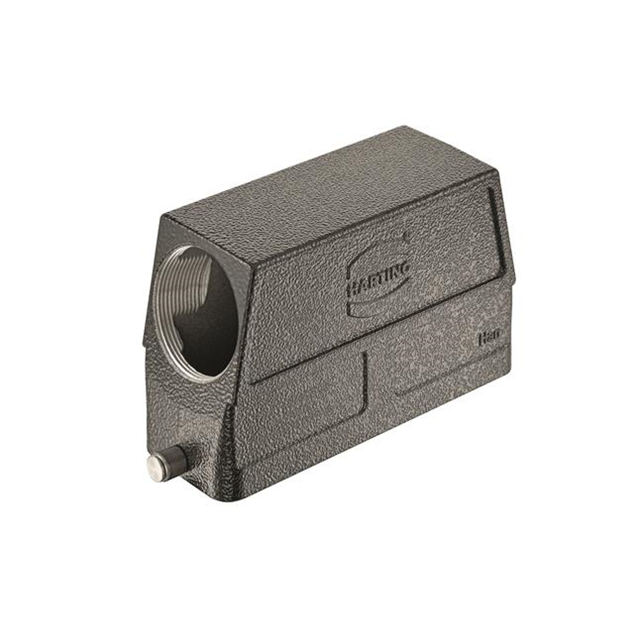

HARTING 19370240548	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Black	Powder Coated							Side Entry	Hood	24 B	IP65 IP66 IP67	125 °C	-40 C

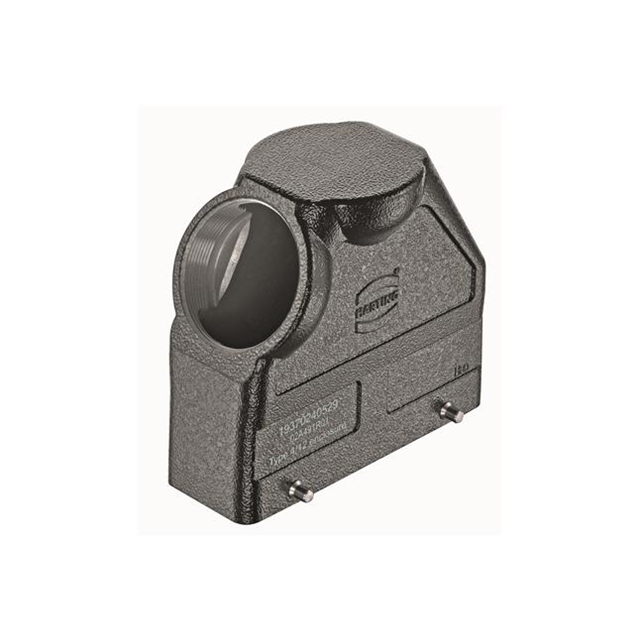

HARTING 19370240529	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Black								Side Entry	Hood	24 B	IP65 IP66 IP67	125 °C	-40 C	M50

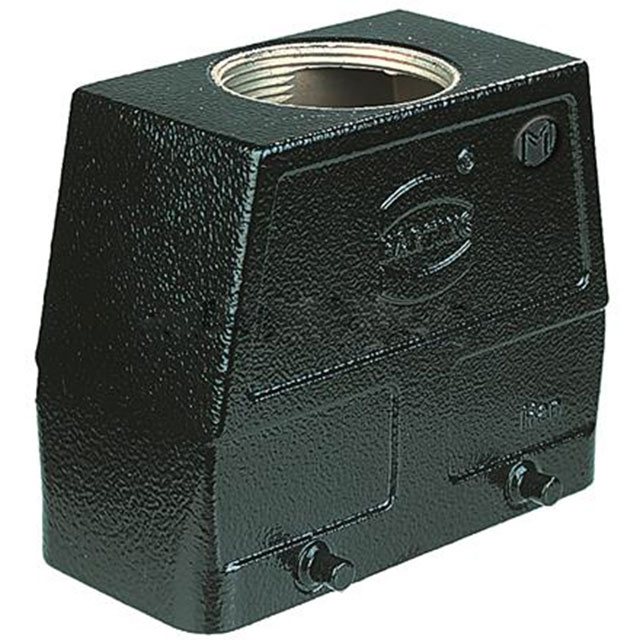

HARTING 19370240427	Locking Clip (2) on Base Bottom	Aluminum Die Cast	Black	Powder Coated	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	Top Entry	Hood	24 B	IP65 - Dust Tight Water Resistant	125 °C	-40 C	M32
