FSP120 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 120W

Part	Current - Output (Max) [Max]	Input Connector	Standard Number	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Output Connector	Polarization	Approval Agency	No Load Power Consumption	Voltage - Output	Form	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Cord Length	Cord Length	Input Type	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [diameter]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Dimming	Voltage - Isolation	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max)	Type	Features	Topology	Number of Outputs	Ratings	Termination Style	Voltage - Input (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]

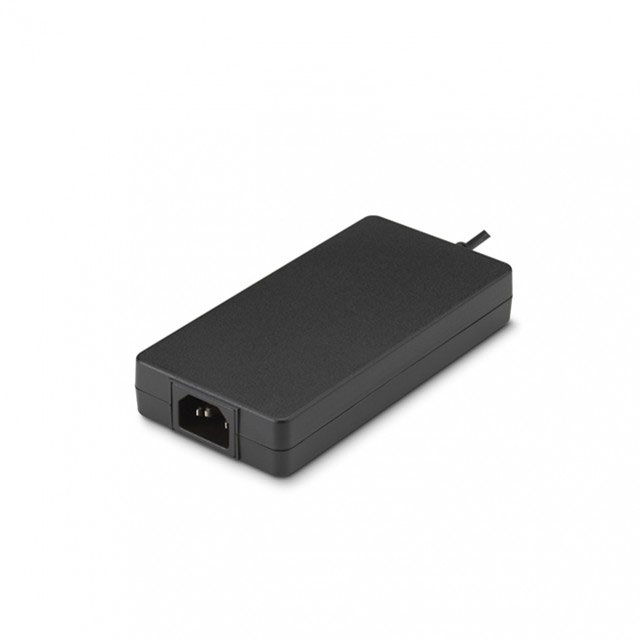

FSP Technology Inc. FSP120-AHAN3	10 A	IEC 320-C14	60950-1 62368-1	120 W	70 °C	0 °C	ITE (Commercial)	Power DIN 4 Pin	Positive Center	CB CCC CE cULus FCC GS TUV VCCI	500 mW	12 V	Desktop (Class I)	CoC Tier 2 Level VI	5.96 "	2.98 "	25.4 mm	1 in	75.6 mm	151.3 mm	1.5 m	59 in	Cord (Sold Separately)	International	264 VAC	90 VAC

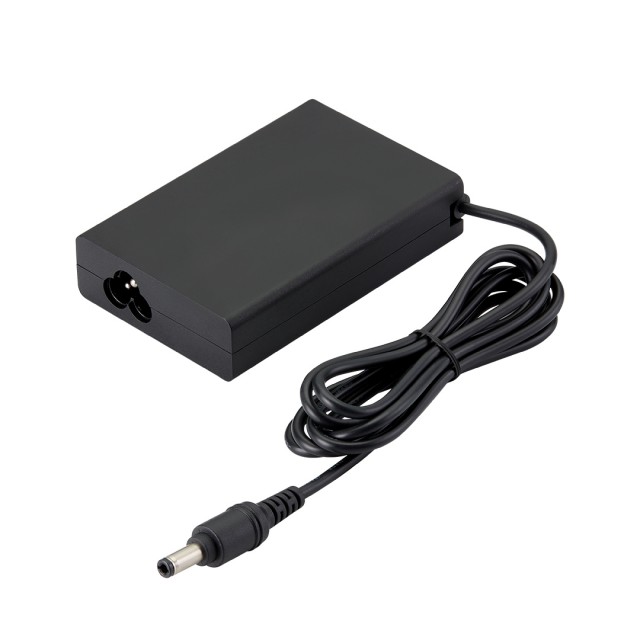

FSP Technology Inc. FSP120-ABBU3	6.32 A	IEC 320-C6	60950-1 62368-1	120 W	70 °C	0 °C	ITE (Commercial)	Barrel Plug	Positive Center		500 mW	19 V	Desktop (Class I)	CoC Tier 2 Level VI	3.86 "	2.54 in		0.89 "		98 mm	1.5 m	59 in	Cord (Sold Separately)	International	264 VAC	90 VAC	2.5 mm 5.5 mm	64.5 mm	22.5 mm
FSP Technology Inc. FSP120-FZAE1(500)MG				120 W						CE cULus					7.68 in	2.68 in		1.53 in		195 mm								68 mm	38.8 mm	Chassis Mount	Analog PWM	500 V	93 %	90 VAC	5 A	Constant Current	OTP OVP SCP	AC DC Converter	1	IP65 IP67	Wire Leads	305 VAC	24 V	16 V
