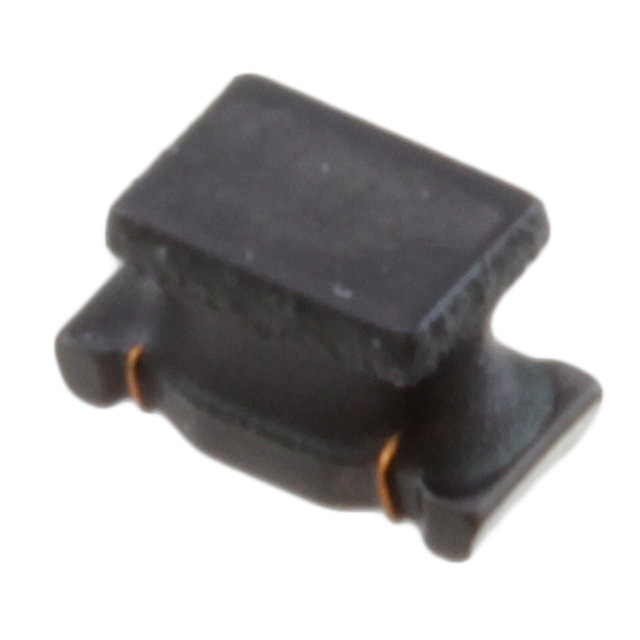

LQH31MN Series

Manufacturer: Murata Power Solutions Inc.

Catalog

FIXED IND 47UH 55MA 10.4 OHM SMD

Part	Tolerance	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Shielding	Inductance Frequency - Test	Current Rating (Amps)	Inductance	Supplier Device Package	Q @ Freq	Material - Core	DC Resistance (DCR)	Supplier Device Package
Murata Power Solutions Inc. LQH31MN470K03L	10 %	Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm	10.4 Ohm	10 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	0.055 A	47 µH	1206	2.5 MHz 40
Murata Power Solutions Inc. LQH31MN2R7J03L	5 %	Drum Core Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm		43 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	135 mA	2.7 µH	1206	10 MHz 35	Ferrite	550 mOhm	3216 Metric
Murata Power Solutions Inc. LQH31MNR56K03L	10 %	Drum Core Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm		180 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	0.2 A	560 nH	1206	25 MHz 30	Ferrite	610 mOhm	3216 Metric
Murata Power Solutions Inc. LQH31MN3R3J03L	5 %	Drum Core Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm	793 mOhm	38 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	130 mA	3.3 µH	1206	8 MHz 35	Ferrite		3216 Metric
Murata Power Solutions Inc. LQH31MN2R2K03L	10 %	Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm	910 mOhm	50 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	140 mA	2.2 µH	1206	10 MHz 35
Murata Power Solutions Inc. LQH31MN6R8J03L	5 %	Drum Core Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm	2.6 Ohm	25 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	110 mA	6.8 µH	1206	8 MHz 35	Ferrite
Murata Power Solutions Inc. LQH31MN150K03L	10 %	Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm	3.9 Ohm	16 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	0.09 A	15 µH	1206	5 MHz 35
Murata Power Solutions Inc. LQH31MN2R2J03L	5 %	Drum Core Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm		50 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	140 mA	2.2 µH	1206	10 MHz 35	Ferrite	700 mOhm	3216 Metric
Murata Power Solutions Inc. LQH31MN560K03L	10 %	Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm		9 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	50 mA	56 µH	1206	2.5 MHz 40		11.57 Ohm
Murata Power Solutions Inc. LQH31MNR82K03L	10 %	Drum Core Wirewound	2 mm	0.079 in	0.063 in	1.6 mm	0.126 "	3.2 mm		120 MHz	85 °C	-40 °C	1206 (3216 Metric)	Surface Mount	Unshielded	1 MHz	0.185 A	820 nH	1206	25 MHz 30	Ferrite	730 mOhm	3216 Metric
