GRPB502 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 100P 1.27MM

Part	Contact Finish Thickness - Post	Style	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Shape	Contact Type	Termination	Number of Rows [custom]	Insulation Material	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Post	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Shrouding	Mounting Type	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Features
Sullins Connector Solutions GRPB502MWCN-RC	Flash	Board to Board Cable	Push-Pull	100	Flash	Square	Male Pin	Solder	2	Nylon 9T Polyamide (PA9T)	All	2.5 mm	0.098 in	UL94 V-0	Gold	0.134 in	3.4 mm	-40 C	105 ░C	3 mm	0.118 in	0.05 in	1.27 mm	Header	Gold	Brass	1.27 mm	0.05 in	Unshrouded	Right Angle Through Hole
Sullins Connector Solutions GRPB502VWVN-RC	Flash	Board to Board Cable	Push-Pull	100	Flash	Square	Male Pin	Solder	2	Nylon 9T Polyamide (PA9T)	All	2.3 mm		UL94 V-0	Gold			-40 C	105 ░C	3 mm	0.118 in	0.05 in	1.27 mm	Header	Gold	Brass	1.27 mm	0.05 in	Unshrouded	Through Hole	0.091 "	1 mm	0.039 in	0.248 in	6.3 mm

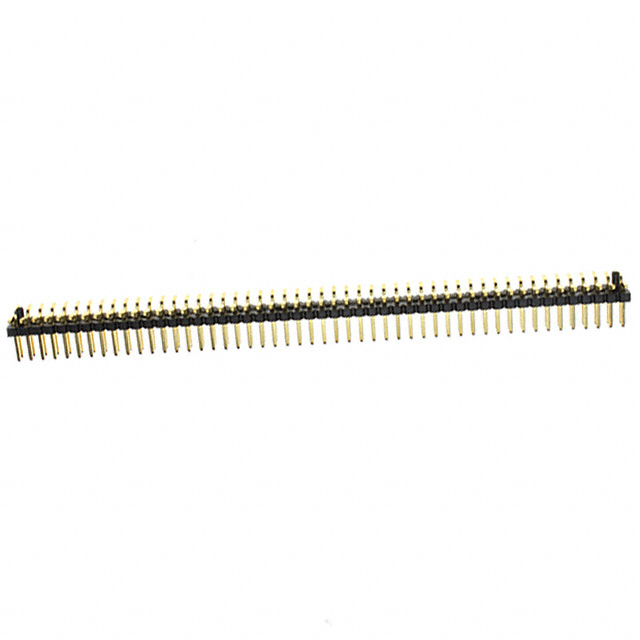

Sullins Connector Solutions GRPB502VWQP-RC	Flash	Board to Board Cable	Push-Pull	100	Flash	Square	Male Pin	Solder	2	Nylon 9T Polyamide (PA9T)	All			UL94 V-0	Gold			-40 C	105 ░C	3 mm	0.118 in	0.05 in	1.27 mm	Header	Gold	Brass	1.27 mm	0.05 in	Unshrouded	Surface Mount		1 mm	0.039 in			Board Guide
