2195835 Series

Catalog

ISM 868 / 915 MHZ ANTENNA

Part	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [Max]	Height (Max) [Max]	Gain	Frequency (Center/Band)	Number of Bands	Termination	Frequency Group [Max]	Frequency Group [Min]	VSWR	RF Family/Standard	Mounting Type	Features	Features	Antenna Type	Power - Max [Max]	Applications

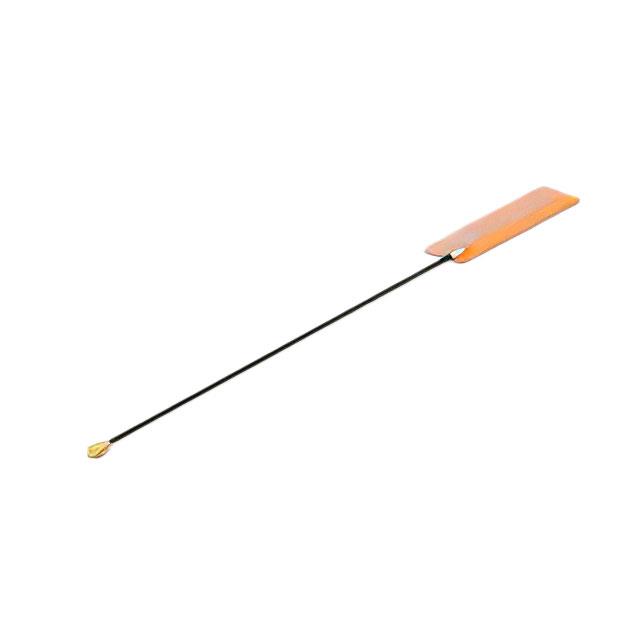

TE Connectivity Raychem Cable Protection 2195835-2	863 MHz	928 MHz	0.2 mm	0.008 in	1.4 dBi	868 MHz 915 MHz	2	MHF	1 GHz	300 MHz	2.3	General ISM	Adhesive	Cable	100 mm	PCB Trace	10 W	ISM
TE Connectivity Raychem Cable Protection 2195835-1	863 MHz	928 MHz	0.2 mm	0.008 in	1.4 dBi	868 MHz 915 MHz	2	MHF	1 GHz	300 MHz	2.3	General ISM	Adhesive	Cable	50 mm	PCB Trace	10 W	ISM

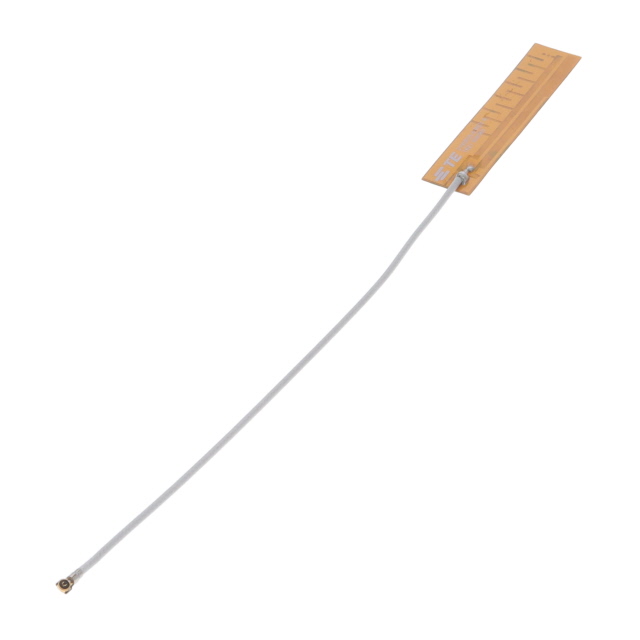

TE Connectivity Raychem Cable Protection 2195835-6	863 MHz	928 MHz	0.2 mm	0.008 in	1.4 dBi	868 MHz 915 MHz	2	MHF4	1 GHz	300 MHz	2.3	General ISM	Adhesive	Cable	100 mm	PCB Trace	10 W	ISM
