CI0103M1 Series
Manufacturer: Cvilux USA
Beta
⌘K
3 POS 2.00MM(.079) SINGLE ROW SM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Number of Positions Loaded | Contact Finish - Post | Insulation Material | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Connector Type | Insulation Color | Number of Rows | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Type | Contact Material | Pitch - Mating | Pitch - Mating | Termination | Contact Shape | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

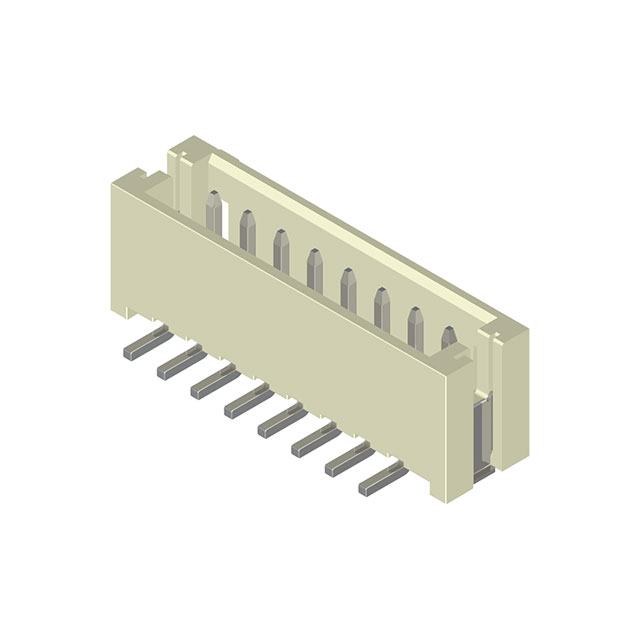

 Cvilux USA | 120 Áin | 3.05 Ám | Board to Cable/Wire | All | Tin | Halogen Free Nylon 6T Polyamide (PA6T) | Shrouded - 4 Wall | 120 µin | 3.05 µm | 250 VAC | Header | Natural | 1 | Detent Lock | 105 ░C | -25 °C | UL94 V-0 | Male Pin | Brass | 0.079 " | 2 mm | Solder | Square | 2 A | 0.142 in | 3.61 mm | 0.263 in | 6.67 mm | Surface Mount | Pick and Place Solder Retention |

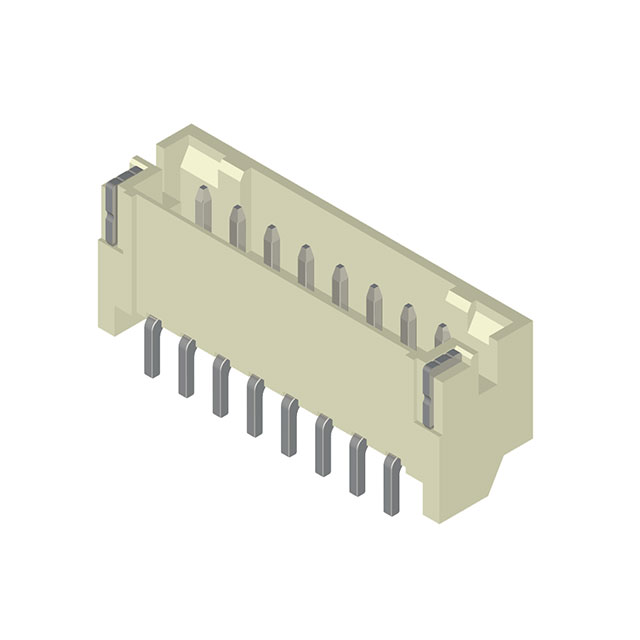

 Cvilux USA | 120 Áin | 3.05 Ám | Board to Cable/Wire | All | Tin | Halogen Free Nylon 6T Polyamide (PA6T) | Shrouded - 4 Wall | 120 µin | 3.05 µm | 250 VAC | Header | Natural | 1 | Detent Lock | 105 ░C | -25 °C | UL94 V-0 | Male Pin | Brass | 0.079 " | 2 mm | Solder | Square | 2 A | 0.142 in | 3.61 mm | 0.217 in | 5.51 mm | Right Angle Surface Mount | Solder Retention |
