796694 Series

Catalog

PLUGGABLE TERMINAL BLOCKS 6 POS TERMI-BLOK HDR DIR. POL.

Part	Material Flammability Rating	Insulation Height	Insulation Height	Contact Material	Number of Levels	Positions Per Level	Mounting Type	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination Style	Color	Contact Mating Finish	Type	Pitch	Pitch	Current - UL	Header Orientation
TE Connectivity AMP Connectors 796694-6	UL94 V-0	0.362 in	9.2 mm	Brass	1	6	Through Hole	300 V	-40 C	110 °C	6	Solder	Blue	Tin	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	11 A	Vertical
TE Connectivity AMP Connectors 1-796694-1	UL94 V-0	0.362 in	9.2 mm	Brass	1	11	Through Hole	300 V	-40 C	110 °C	11	Solder	Blue	Tin	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	11 A	Vertical
TE Connectivity AMP Connectors 796694-2	UL94 V-0	0.362 in	9.2 mm	Brass	1	2	Through Hole	300 V	-40 C	110 °C	2	Solder	Blue	Tin	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	11 A	Vertical
TE Connectivity AMP Connectors 796694-3	UL94 V-0	0.362 in	9.2 mm	Brass	1	3	Through Hole	300 V	-40 C	110 °C		Solder	Blue	Tin	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	11 A	Vertical

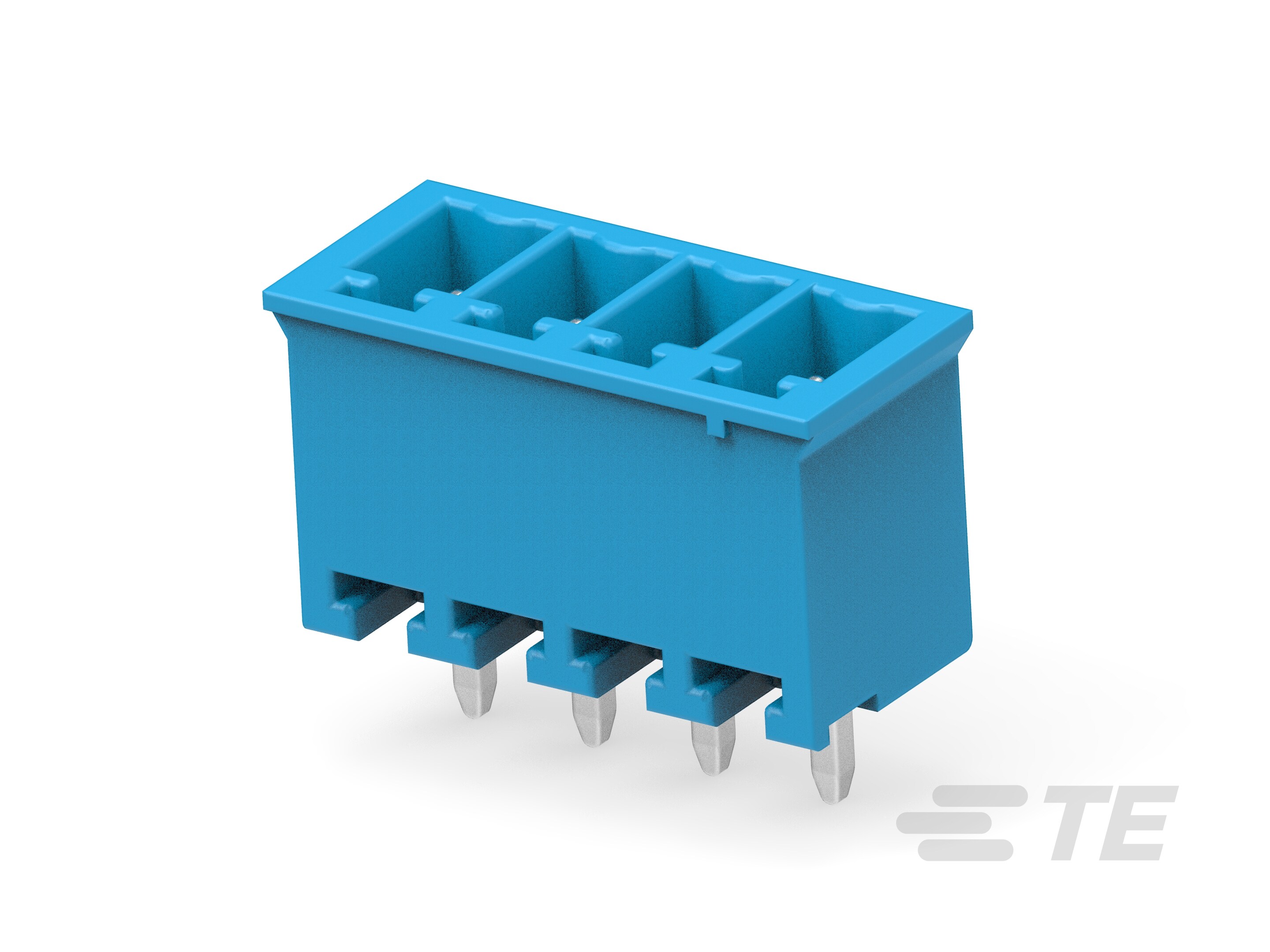

TE Connectivity AMP Connectors 796694-4	UL94 V-0	0.362 in	9.2 mm	Brass	1	4	Through Hole	300 V	-40 C	110 °C	4	Solder	Blue	Tin	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	11 A	Vertical
