R73RI Series
Manufacturer: KEMET
Beta
⌘K

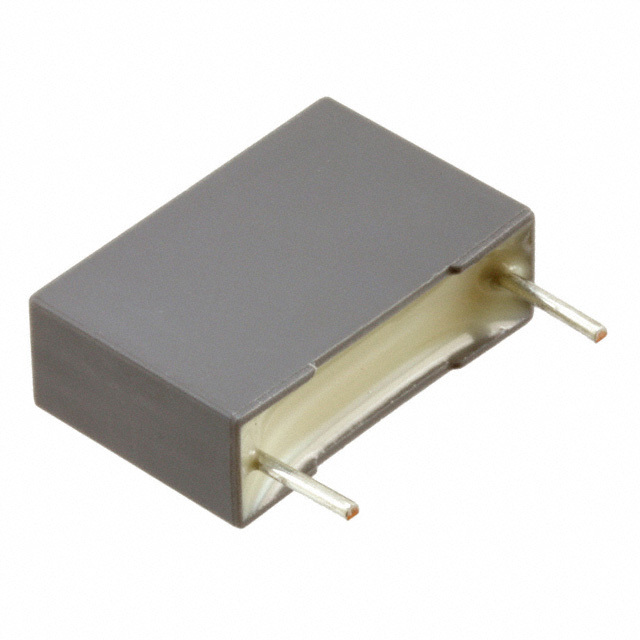

CAP FILM 3300PF 5% 1.25KVDC RAD
| Part | Voltage Rating - DC | Voltage Rating - DC | Height - Seated (Max) [Max] | Height - Seated (Max) | Mounting Type | Capacitance | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Ratings | Lead Spacing | Lead Spacing | Voltage Rating - AC | Applications | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Termination | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1250 V | 1.25 kV | 0.472 in | 12 mm | Through Hole | 0.0033 µF | 5 % | -55 C | 105 ░C | Polypropylene (PP) Metallized | AEC-Q200 | 15 mm | 0.591 in | 450 V | Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching | 0.236 " | 6 mm | 0.709 in | 18 mm | PC Pins | Radial |
