12TTS08 Series

Catalog

SCR 800V 12.5A TO263AB

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - On State (Vtm) (Max) [Max]	Mounting Type	Supplier Device Package	Current - Hold (Ih) (Max) [Max]	SCR Type	Current - Gate Trigger (Igt) (Max) [Max]	Current - Off State (Max) [Max] [custom]	Voltage - Gate Trigger (Vgt) (Max)	Current - On State (It (AV)) (Max)	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Grade	Qualification
Vishay General Semiconductor - Diodes Division VS-12TTS08SPBF	125 °C	-40 C	1.2 V	Surface Mount	TO-263AB (D2PAK)	30 mA	Standard Recovery	15 mA	50 µA	1 V	8 A	800 V	95 A	12.5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Vishay General Semiconductor - Diodes Division VS-12TTS08STRL-M3	125 °C	-40 C	1.2 V	Surface Mount	TO-263AB (D2PAK)	30 mA	Standard Recovery	15 mA	1 mA	1 V	8 A	800 V	110 A	12.5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB

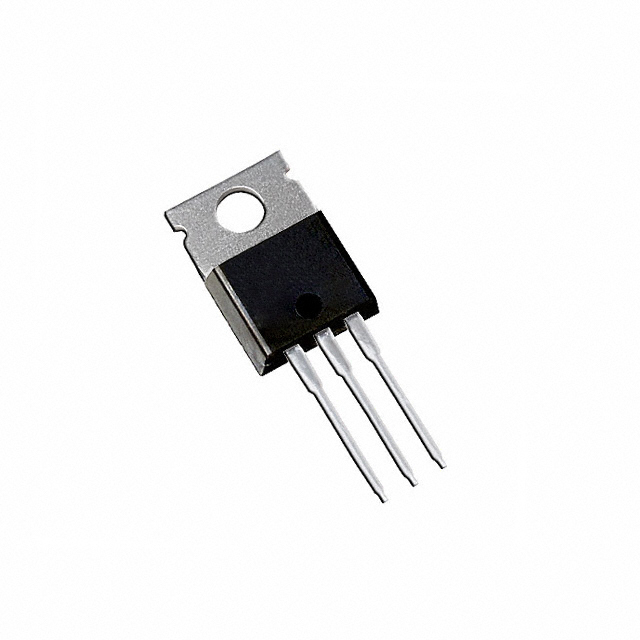

Vishay General Semiconductor - Diodes Division VS-12TTS08HM3	125 °C	-40 C	1.2 V	Through Hole	TO-220-3	30 mA	Standard Recovery	15 mA	50 µA	1 V	8 A	800 V	110 A	12.5 A	TO-220-3	Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division VS-12TTS08-M3	125 °C	-40 C	1.2 V	Through Hole	TO-220-3	30 mA	Standard Recovery	15 mA	50 µA	1 V	8 A	800 V	95 A	12.5 A	TO-220-3
Vishay General Semiconductor - Diodes Division 12TTS08S	125 °C	-40 C	1.2 V	Surface Mount	TO-263AB (D2PAK)	30 mA	Standard Recovery	15 mA		1 V	8 A	800 V	140 A	12.5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
