1N4148 Series

Catalog

DIODE SWITCHING 100V 0.15A 2-PIN DO-35 AMMO

Part	Technology	Voltage - DC Reverse (Vr) (Max)	Package Name	Current - Average Rectified (Io)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Voltage - Forward (Vf) (Max)	Package / Case	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Current - Reverse Leakage	Mounting Type	Reverse Recovery Time (trr)	Capacitance	Operating Temperature - Junction

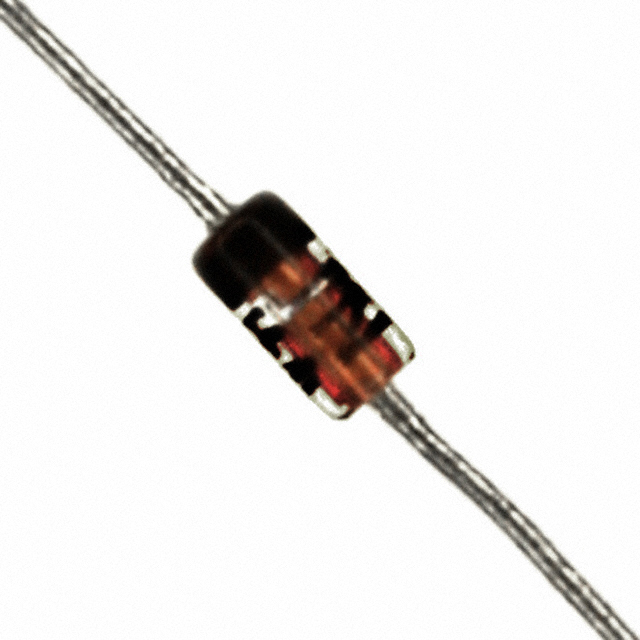

Comchip Technology 1N4148-G	Standard	75 V	DO-35	150 mA	200 °C	-65 °C	1 V	Axial DO-204AH DO-35	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	5 µA	Through Hole

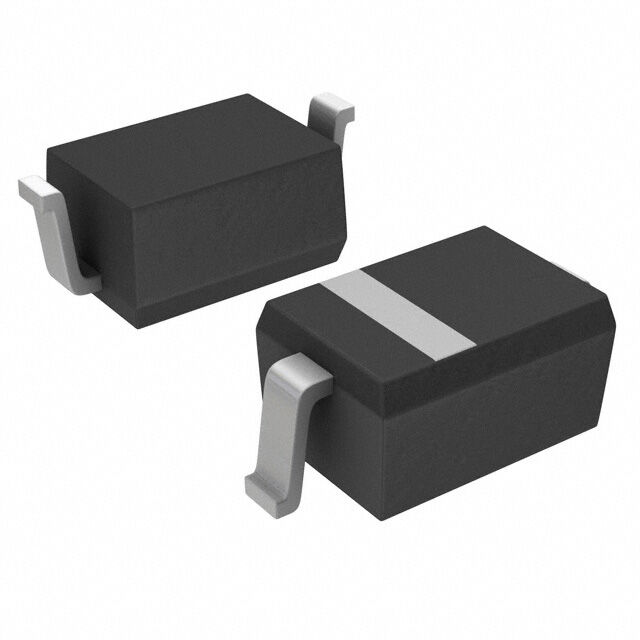

Comchip Technology 1N4148WS-HF	Standard	75 V	SOD-323	150 mA			1.25 V	SC-76 SOD-323	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	1 µA	Surface Mount	4 ns	2 pF	125 °C
Comchip Technology 1N4148W-HF	Standard	100 V	SOD-123	150 mA			1.25 V	SOD-123	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	5 µA	Surface Mount	4 ns	4 pF	150 °C
