SBSMC Series

Catalog

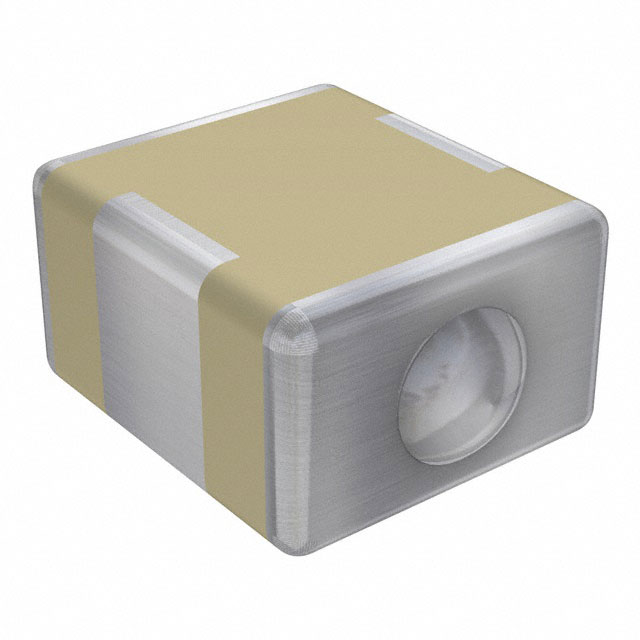

SURFACE MOUNT C AND PI FILTER

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Rated	Insertion Loss	Package / Case	Capacitance	Height (Max) [z]	Height (Max) [z]	Temperature Coefficient	Current	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance
Knowles Syfer SBSMC5000472MXT	5.7 mm	0.224 "	0.197 "	5 mm	500 V	40 dB	2220 (5750 Metric) 3 PC Pad	0.0047 µF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC0500474MXB	5.7 mm	0.224 "	0.197 "	5 mm	50 VDC	43 dB	2220 (5750 Metric) 3 PC Pad	0.47 µF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC5000683MXT	5.7 mm	0.224 "	0.197 "	5 mm	500 V	43 dB	2220 (5750 Metric) 3 PC Pad	0.068 µF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC5000472MXB	5.7 mm	0.224 "	0.197 "	5 mm	500 V	40 dB	2220 (5750 Metric) 3 PC Pad	0.0047 µF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC5000682MXR	5.7 mm	0.224 "	0.197 "	5 mm	500 V	44 dB	2220 (5750 Metric) 3 PC Pad	6800 pF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC5000152MXB	5.7 mm	0.224 "	0.197 "	5 mm	500 V	25 dB	2220 (5750 Metric) 3 PC Pad	1500 pF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC2000104MXB	5.7 mm	0.224 "	0.197 "	5 mm	200 VDC	43 dB	2220 (5750 Metric) 3 PC Pad	100000 pF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC5000333MXT	5.7 mm	0.224 "	0.197 "	5 mm	500 V	43 dB	2220 (5750 Metric) 3 PC Pad	0.033 çF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC0500474MXR	5.7 mm	0.224 "	0.197 "	5 mm	50 VDC	43 dB	2220 (5750 Metric) 3 PC Pad	0.47 µF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
Knowles Syfer SBSMC5000103MXR	5.7 mm	0.224 "	0.197 "	5 mm	500 V	50 dB	2220 (5750 Metric) 3 PC Pad	10000 pF	0.133 in	3.38 mm	X7R	20 A	-55 C	125 °C	Surface Mount	20 %
