HLMP-EL15 Series

Catalog

LED AMBER CLEAR T-1 3/4 T/H

Part	Viewing Angle	Lens Style	Current - Test	Lens Size	Lens Size	Wavelength - Peak	Supplier Device Package	Color	Millicandela Rating	Package / Case	Lens Color	Mounting Type	Height (Max) [Max]	Configuration	Lens Transparency	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)

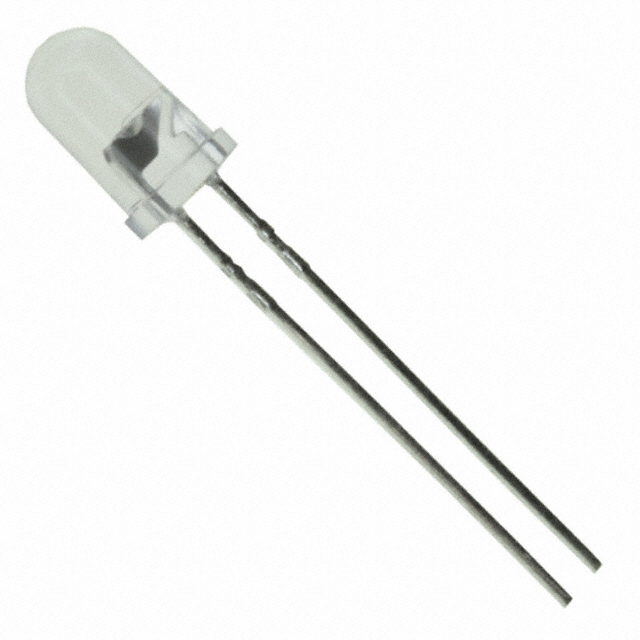

Broadcom Limited HLMP-EL15-VY0DD	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	8100 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-VYKDD	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	8100 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-UXKDD	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	6250 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-VY000	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	8100 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-WZ000	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber		Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-UX000	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	6250 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-UX0DD	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	6250 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-SV000	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	3700 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-VYK00	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	8100 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
Broadcom Limited HLMP-EL15-QT000	15 °	Round with Domed Top	20 mA	T-1 3/4	5 mm	592 nm	T-1 3/4	Amber	2175 mcd	Radial	Colorless	Through Hole	8.91 mm	Standard	Clear	590 nm	2.02 V
