1586041 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER R/A 4POS 4.2MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Applications	Style	Mounting Type	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Type	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Shrouding	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Fastening Type	Termination	Number of Positions
TE Connectivity Raychem Cable Protection 1586041-4	-40 °C	105 ░C	Tin	General Purpose Industrial Lighting	Board to Cable/Wire	Through Hole Right Angle	Square	All	2.03 µm	80 µin	2	Male Pin	UL94 V-2	0.402 in	10.2 mm	Header	3.6 mm	0.142 in	4	Nylon Polyamide (PA)	4.2 mm	0.165 in	9 A	Shrouded - 4 Wall	Brass Alloy	4.2 mm	0.165 in	Natural	2.03 µm	80 µin	600 VAC	Locking Ramp	Solder
TE Connectivity Raychem Cable Protection 1-1586041-8	-40 °C	105 ░C	Tin	General Purpose Industrial Lighting	Board to Cable/Wire	Through Hole Right Angle	Square	All	2.03 µm	80 µin	2	Male Pin	UL94 V-2	0.402 in	10.2 mm	Header	3.6 mm	0.142 in	18	Nylon Polyamide (PA)	4.2 mm	0.165 in	9 A	Shrouded - 4 Wall	Brass Alloy	4.2 mm	0.165 in	Natural	2.03 µm	80 µin	600 VAC	Locking Ramp	Solder
TE Connectivity Raychem Cable Protection 1-1586041-6	-40 °C	105 ░C	Tin	General Purpose Industrial Lighting	Board to Cable/Wire	Through Hole Right Angle	Square	All	2.03 µm	80 µin	2	Male Pin	UL94 V-2	0.402 in	10.2 mm	Header	3.6 mm	0.142 in		Nylon Polyamide (PA)	4.2 mm	0.165 in	9 A	Shrouded - 4 Wall	Brass Alloy	4.2 mm	0.165 in	Natural	2.03 µm	80 µin	600 VAC	Locking Ramp	Solder	16

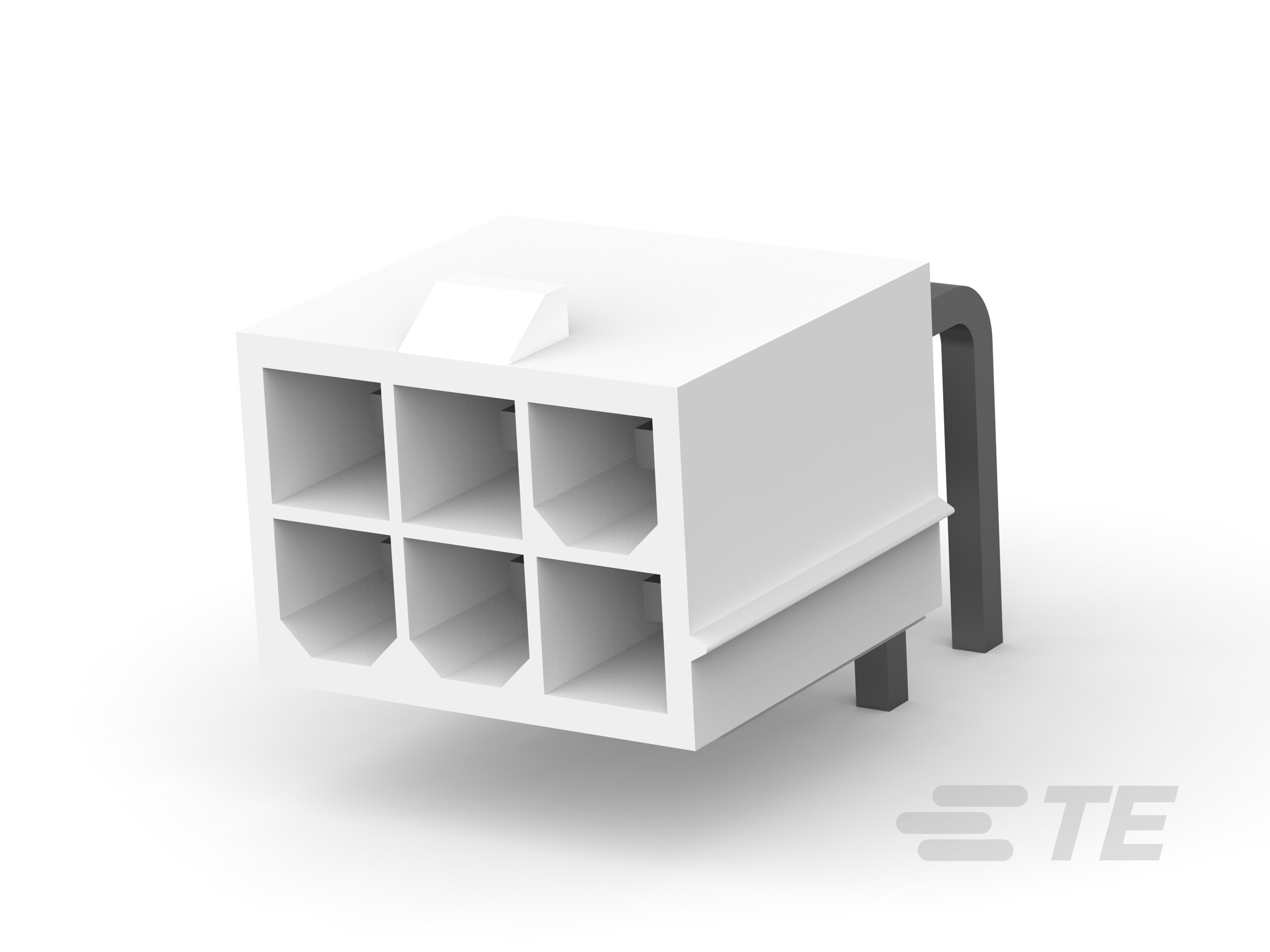

TE Connectivity Raychem Cable Protection 1586041-6	-40 °C	105 ░C	Tin	General Purpose Industrial Lighting	Board to Cable/Wire	Through Hole Right Angle	Square	All	2.03 µm	80 µin	2	Male Pin	UL94 V-2	0.402 in	10.2 mm	Header	3.6 mm	0.142 in	6	Nylon Polyamide (PA)	4.2 mm	0.165 in	9 A	Shrouded - 4 Wall	Brass Alloy	4.2 mm	0.165 in	Natural	2.03 µm	80 µin	600 VAC	Locking Ramp	Solder
TE Connectivity Raychem Cable Protection 2-1586041-2	-40 °C	105 ░C	Tin	General Purpose Industrial Lighting	Board to Cable/Wire	Through Hole Right Angle	Square	All	2.03 µm	80 µin	2	Male Pin	UL94 V-2	0.402 in	10.2 mm	Header	3.6 mm	0.142 in	22 positions	Nylon Polyamide (PA)	4.2 mm	0.165 in	9 A	Shrouded - 4 Wall	Brass Alloy	4.2 mm	0.165 in	Natural	2.03 µm	80 µin	600 VAC	Locking Ramp	Solder
