DAC121S101 Series

Catalog

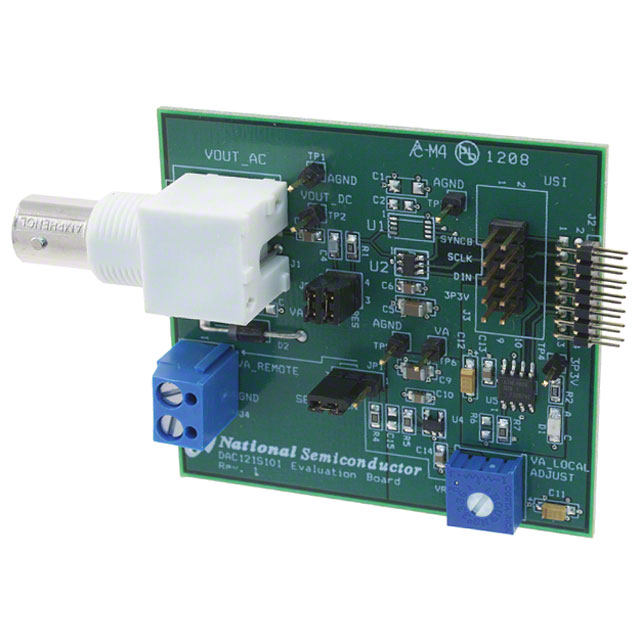

BOARD EVALUATION DAC121S101

Part	Data Interface	Utilized IC / Part	Number of DAC's	Settling Time	Number of Bits	DAC Type	Supplied Contents	Supplier Device Package	INL/DNL (LSB) [Min]	INL/DNL (LSB) [Max]	INL/DNL (LSB)	Output Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Package / Case	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Architecture	Reference Type	Package / Case [custom]	Package / Case
Texas Instruments DAC121S101EVAL	Serial	DAC121S101	1	12 µs	12 bits	Voltage	Board(s)
Texas Instruments DAC121S101CIMK	DSP SPI			10 µs	12 bits			SOT-23-THIN	-1 LSB	1 LSB	±8	Voltage - Buffered	5.5 V	2.7 V	SOT-23-6 Thin TSOT-23-6	2.7 V	5.5 V	Surface Mount	-40 °C	105 ░C	String DAC	Supply
Texas Instruments DAC121S101CIMKX	DSP SPI			10 µs	12 bits			SOT-23-THIN	-1 LSB	1 LSB	±8	Voltage - Buffered	5.5 V	2.7 V	SOT-23-6 Thin TSOT-23-6	2.7 V	5.5 V	Surface Mount	-40 °C	105 ░C	String DAC	Supply
Texas Instruments DAC121S101EVAL/NOPB	Serial	DAC121S101	1	12 µs	12 bits	Voltage	Board(s)
Texas Instruments DAC121S101CIMM/NOPB	DSP SPI			10 µs	12 bits				-1 LSB	1 LSB	±8	Voltage - Buffered	5.5 V	2.7 V	8-MSOP 8-TSSOP	2.7 V	5.5 V	Surface Mount	-40 °C	105 ░C	String DAC	Supply	0.118 in	3 mm
Texas Instruments DAC121S101CIMM	DSP SPI			10 µs	12 bits				-1 LSB	1 LSB	±8	Voltage - Buffered	5.5 V	2.7 V	8-MSOP 8-TSSOP	2.7 V	5.5 V	Surface Mount	-40 °C	105 ░C	String DAC	Supply	0.118 in	3 mm
Texas Instruments DAC121S101CIMMX/NOPB	DSP SPI			10 µs	12 bits				-1 LSB	1 LSB	±8	Voltage - Buffered	5.5 V	2.7 V	8-MSOP 8-TSSOP	2.7 V	5.5 V	Surface Mount	-40 °C	105 ░C	String DAC	Supply	0.118 in	3 mm
Texas Instruments DAC121S101CIMK/NOPB	DSP SPI			10 µs	12 bits			SOT-23-THIN	-1 LSB	1 LSB	±8	Voltage - Buffered	5.5 V	2.7 V	SOT-23-6 Thin TSOT-23-6	2.7 V	5.5 V	Surface Mount	-40 °C	105 ░C	String DAC	Supply
