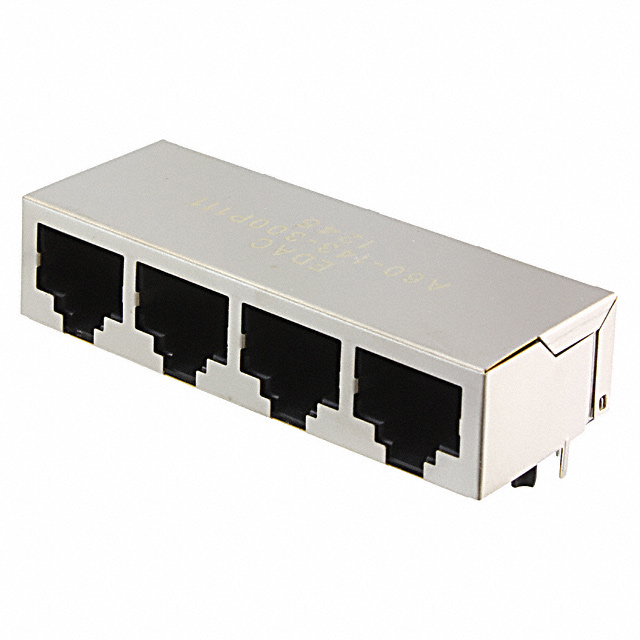

A60-143 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN JACK 4PORT 1000 BASE-T PCB
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Number of Cores per Jack | Height Above Board [z] | Height Above Board [z] | Contact Material | Termination | Number of Rows | Features | LED Color | Contact Finish | Connector Type | Mounting Type | Orientation | Tab Direction | Shielding | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 0.38 µm | 15 µin | Polybutylene Terephthalate (PBT) Polyester | 8 | 13.8 mm | 0.543 in | Phosphor Bronze | Solder | 1 | Board Lock | Does Not Contain LED | Gold | RJ45 | Through Hole | 90 ° | Down | Shielded | 4 | 70 °C | 0 °C | 10/100/1000 Base-T AutoMDIX |
