845-057 Series
Manufacturer: EDAC Inc.
Beta
⌘K

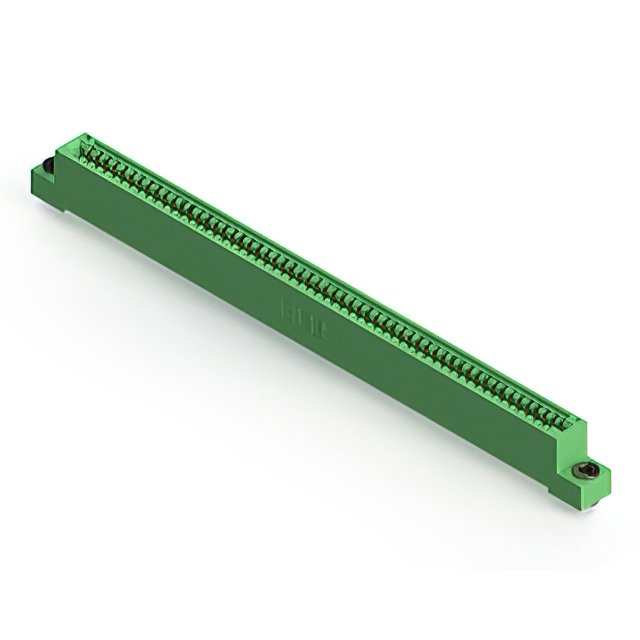

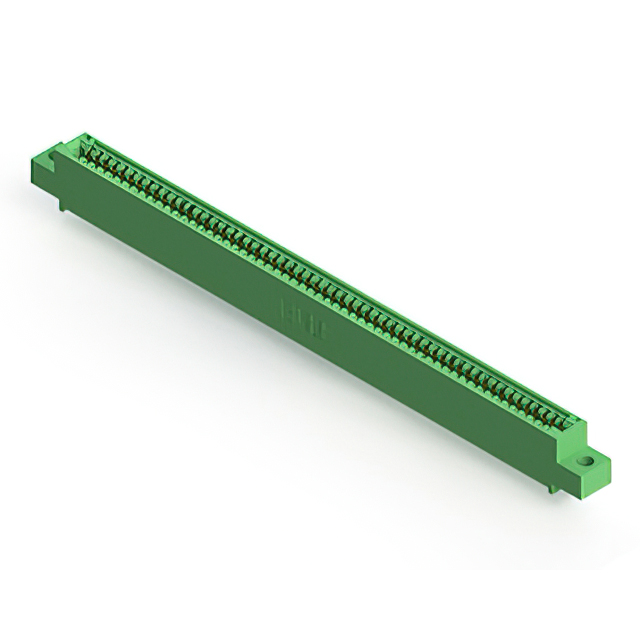

CONN EDGE SINGLE FML 57POS 0.100
| Part | Material - Insulation | Termination Rows | Mounting Type | Number of Rows | Read Out | Card Type | Card Thickness [Max] | Card Thickness [Min] | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions | Termination | Contact Finish Thickness | Contact Finish Thickness | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Contact Type | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Solder | 0.25 Ám | 10 Áin | Green | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Solder | 0.25 Ám | 10 Áin | Green | 0.156 " | 3.96 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Wire Wrap | 0.25 Ám | 10 Áin | Green | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Green | 0.128 " | 3.25 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Right Angle Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Solder | 0.25 Ám | 10 Áin | Green | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Solder | 0.25 Ám | 10 Áin | Green | 0.156 " | 3.96 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Right Angle Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Solder | 0.25 Ám | 10 Áin | Green | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Solder | 0.25 Ám | 10 Áin | Green | 0.156 " | 3.96 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Wire Wrap | 0.25 Ám | 10 Áin | Green | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 1 | Single | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 125 °C | -40 C | Gold | 57 | 57 | Wire Wrap | 0.25 Ám | 10 Áin | Green | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Copper Alloy | Cantilever | 0.1 " | 2.54 mm |
