NCP382 Series

Catalog

IC PWR SWITCH P-CHAN 1:2 8SOIC

Part	Rds On (Typ)	Switch Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Voltage - Load [Min]	Voltage - Load [Max]	Features	Package / Case	Package / Case [y]	Package / Case [x]	Output Configuration	Number of Outputs	Mounting Type	Interface	Supplier Device Package	Ratio - Input:Output [custom]	Output Type	Input Type	Utilized IC / Part	Secondary Attributes	Type	Supplied Contents	Function	Contents
ON Semiconductor NCP382LD10AAR2G	80 mOhm	General Purpose	1 A	85 °C	-40 °C	Current Limiting (Fixed) Over Temperature UVLO	2.5 V	5.5 V	Slew Rate Controlled Status Flag	8-SOIC	3.9 mm	0.154 in	High Side	2	Surface Mount	On/Off	8-SOIC	1:2	P-Channel	Non-Inverting

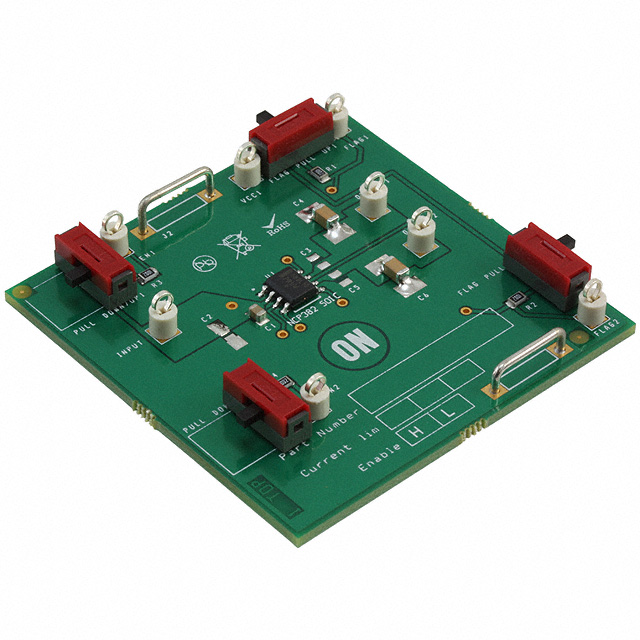

ON Semiconductor NCP382LD10AAGEVB																					NCP382	Thermal Shutdown Circuit	Power Management	Board(s)	Power Distribution Switch (Load Switch)	Board(s)
ON Semiconductor NCP382LMN15AATXG	95 mOhm	General Purpose	1.5 A	85 °C	-40 °C		2.5 V	5.5 V		8-VDFN Exposed Pad				2	Surface Mount		8-DFN (3x3)
ON Semiconductor NCP382HD15AAGEVB																					NCP382	Thermal Shutdown Circuit	Power Management	Board(s)	Power Distribution Switch (Load Switch)	Board(s)
ON Semiconductor NCP382HMN20AATXG	95 mOhm	General Purpose	2 A	85 °C	-40 °C		2.5 V	5.5 V		8-VDFN Exposed Pad				2	Surface Mount		8-DFN (3x3)

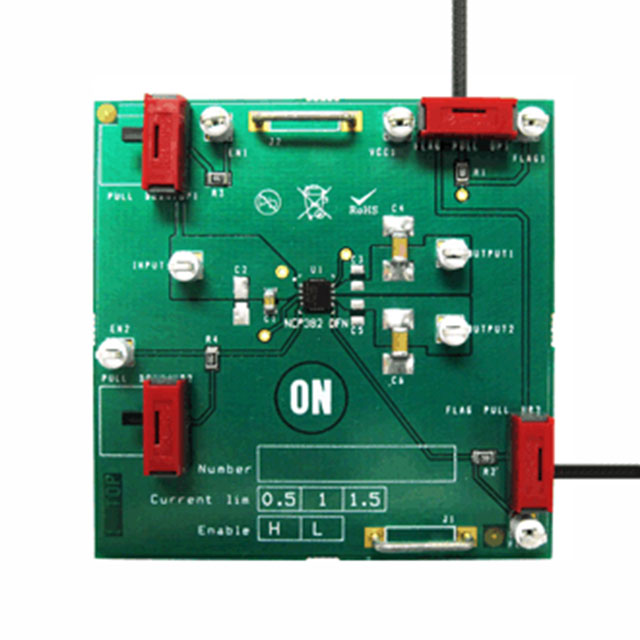

ON Semiconductor NCP382LMN15AGEVB																					NCP382	Thermal Shutdown Circuit	Power Management	Board(s)	Power Distribution Switch (Load Switch)	Board(s)
ON Semiconductor NCP382LMN10AGEVB																					NCP382	Thermal Shutdown Circuit	Power Management	Board(s)	Power Distribution Switch (Load Switch)
ON Semiconductor NCP382HD05AAR2G	80 mOhm	General Purpose	500 mA	85 °C	-40 °C	Current Limiting (Fixed) Over Temperature UVLO	2.5 V	5.5 V	Slew Rate Controlled Status Flag	8-SOIC	3.9 mm	0.154 in	High Side	2	Surface Mount	On/Off	8-SOIC	1:2	P-Channel	Non-Inverting

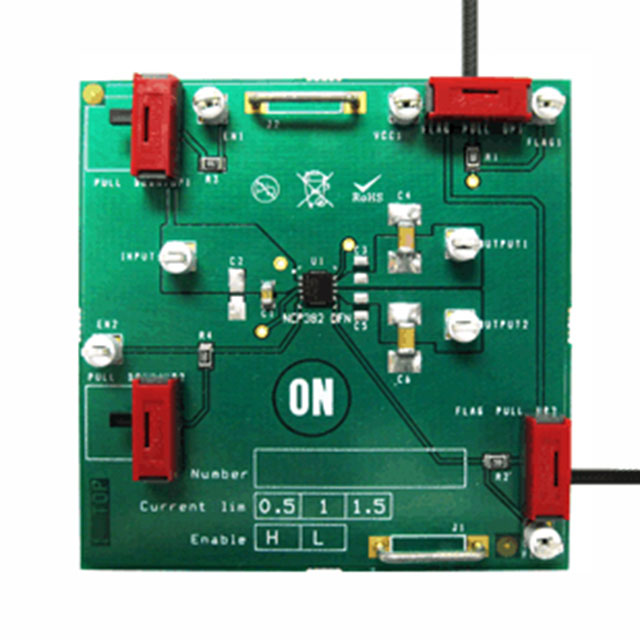

ON Semiconductor NCP382LMN20AGEVB																					NCP382	Thermal Shutdown Circuit	Power Management	Board(s)	Power Distribution Switch (Load Switch)	Board(s)
ON Semiconductor NCP382HD10AAR2G	80 mOhm	General Purpose	1 A	85 °C	-40 °C	Current Limiting (Fixed) Over Temperature UVLO	2.5 V	5.5 V	Slew Rate Controlled Status Flag	8-SOIC	3.9 mm	0.154 in	High Side	2	Surface Mount	On/Off	8-SOIC	1:2	P-Channel	Non-Inverting
