3087A Series
Manufacturer: Belden Inc.
Beta
⌘K

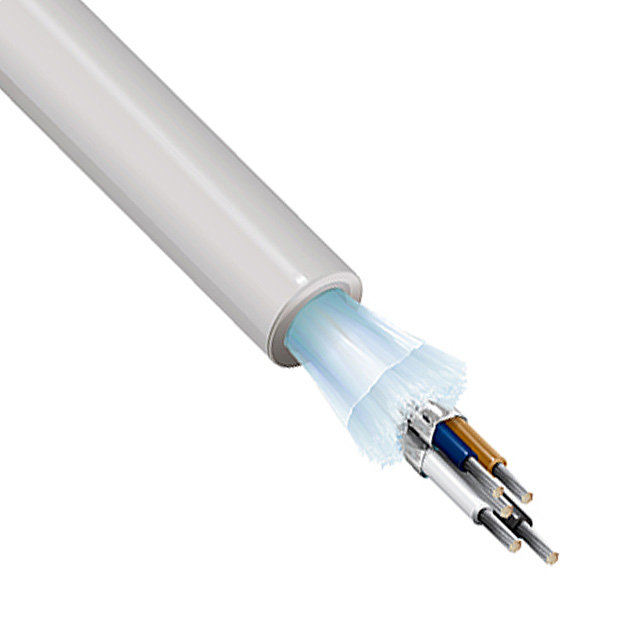

MULTI-PAIR 4COND 22AWG GRAY
| Part | Shield Material | Shield Coverage | Shield Type | Ratings | Number of Conductors | Cable Type | Length | Length | Conductor Material | Features | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Jacket (Insulation) Material | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Foil | UL Style 2464 | 4 | Multi-Pair | 152.4 m | 500 ft | Copper Tinned | Drain Wire | 34 AWG | 19 | 22 AWG | Gray | 80 °C | -30 ░C | 0.035 in | 0.889 mm | Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | ||
Belden Inc. | Aluminum | 100 % | Foil | UL Style 2464 | 4 | Multi-Pair | Copper Tinned | Drain Wire | 34 AWG | 19 | 22 AWG | Gray | 80 °C | -30 ░C | 0.035 in | 0.889 mm | Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 2000 ft | 609.6 m | ||
Belden Inc. | Aluminum | 100 % | Foil | UL Style 2464 | 4 | Multi-Pair | 304.8 m | 1000 ft | Copper Tinned | Drain Wire | 34 AWG | 19 | 22 AWG | Gray | 80 °C | -30 ░C | 0.035 in | 0.889 mm | Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC |
