MAX16813 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

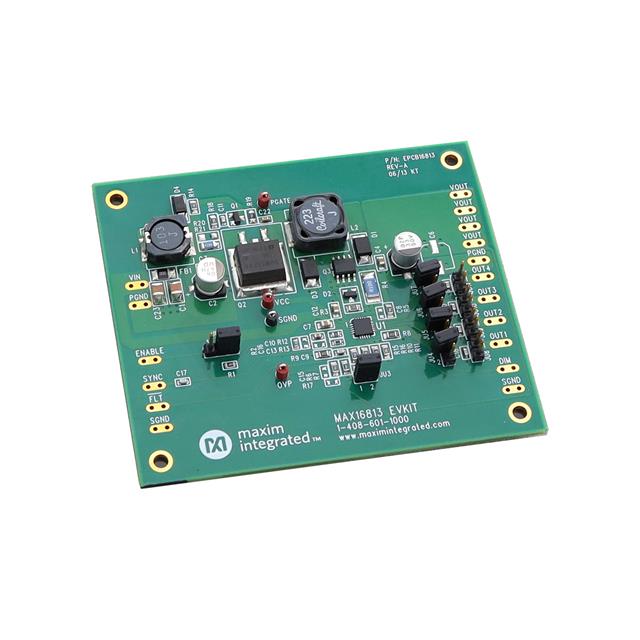

EVAL KIT FOR MAX16813

Part	Current - Output / Channel	Supplied Contents	Outputs and Type	Outputs and Type	Features	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Topology	Voltage - Supply (Max) [Max]	Dimming	Package / Case	Voltage - Supply (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Number of Outputs	Type	Mounting Type	Supplier Device Package	Qualification	Frequency [Max]	Frequency [Min]	Applications	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]
Analog Devices Inc./Maxim Integrated MAX16813TEVKIT#	150 mA	Board(s)	4	Non-Isolated	Dimmable	MAX16813	40 V	6.5 V
Analog Devices Inc./Maxim Integrated MAX16813BATP/V+	150 mA								SEPIC Step-Up (Boost)	40 V	PWM	20-WFQFN Exposed Pad	4.75 V	-40 °C	125 °C	Automotive	4	DC DC Controller	Surface Mount	20-TQFN (4x4)	AEC-Q100	2 MHz	200 kHz	Backlight Lighting
Analog Devices Inc./Maxim Integrated MAX16813ATP+T	150 mA								SEPIC Step-Up (Boost)	40 V	PWM	20-WFQFN Exposed Pad	4.75 V	-40 °C	125 °C	Automotive	4	DC DC Controller	Surface Mount	20-TQFN (4x4)		2 MHz	200 kHz	Backlight Lighting
Analog Devices Inc./Maxim Integrated MAX16813AUP+	150 mA								SEPIC Step-Up (Boost)	40 V	PWM		4.75 V	-40 °C	125 °C	Automotive	4	DC DC Controller	Surface Mount	20-TSSOP-EP		2 MHz	200 kHz	Backlight Lighting	0.173 in 4.4 mm	Exposed Pad	20-TSSOP
Analog Devices Inc./Maxim Integrated MAX16813EVKIT#	150 mA	Board(s)	4	Non-Isolated Outputs	Dimmable	MAX16813	40 V	6.5 V
Analog Devices Inc./Maxim Integrated MAX16813AUP/V+	150 mA								SEPIC Step-Up (Boost)	40 V	PWM		4.75 V	-40 °C	125 °C	Automotive	4	DC DC Controller	Surface Mount	20-TSSOP-EP	AEC-Q100	2 MHz	200 kHz	Backlight Lighting	0.173 in 4.4 mm	Exposed Pad	20-TSSOP
Analog Devices Inc./Maxim Integrated MAX16813BAUP/V+	150 mA								SEPIC Step-Up (Boost)	40 V	PWM		4.75 V	-40 °C	125 °C	Automotive	4	DC DC Controller	Surface Mount	20-TSSOP-EP	AEC-Q100	2 MHz	200 kHz	Backlight Lighting	0.173 in 4.4 mm	Exposed Pad	20-TSSOP
Analog Devices Inc./Maxim Integrated MAX16813ATP+	150 mA								SEPIC Step-Up (Boost)	40 V	PWM	20-WFQFN Exposed Pad	4.75 V	-40 °C	125 °C	Automotive	4	DC DC Controller	Surface Mount	20-TQFN (4x4)		2 MHz	200 kHz	Backlight Lighting
Analog Devices Inc./Maxim Integrated MAX16813AUP+T	150 mA								SEPIC Step-Up (Boost)	40 V	PWM		4.75 V	-40 °C	125 °C	Automotive	4	DC DC Controller	Surface Mount	20-TSSOP-EP		2 MHz	200 kHz	Backlight Lighting	0.173 in 4.4 mm	Exposed Pad	20-TSSOP
Analog Devices Inc./Maxim Integrated MAX16813AUP/V+T	150 mA								SEPIC Step-Up (Boost)	40 V	PWM		4.75 V	-40 °C	125 °C	Automotive	4	DC DC Controller	Surface Mount	20-TSSOP-EP	AEC-Q100	2 MHz	200 kHz	Backlight Lighting	0.173 in 4.4 mm	Exposed Pad	20-TSSOP
