746-050 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 50POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Contact Finish	Color	Gender	Number of Positions/Bay/Row	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Rows [custom]	Contact Material	Contact Type	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Card Type	Termination Rows	Number of Rows
EDAC Inc. 746-050-540-601	2	Polyester Thermoplastic	Gold	Black	Female	25	3.18 mm	0.125 in	30 Áin	0.76 Ám	Dual	2	Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit Wire Wrap	Non Specified - Dual Edge
EDAC Inc. 746-050-545-601	2	Polyester Thermoplastic	Gold	Black	Female	25	3.18 mm	0.125 in	30 Áin	0.76 Ám	Dual	2	Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit Wire Wrap	Non Specified - Dual Edge

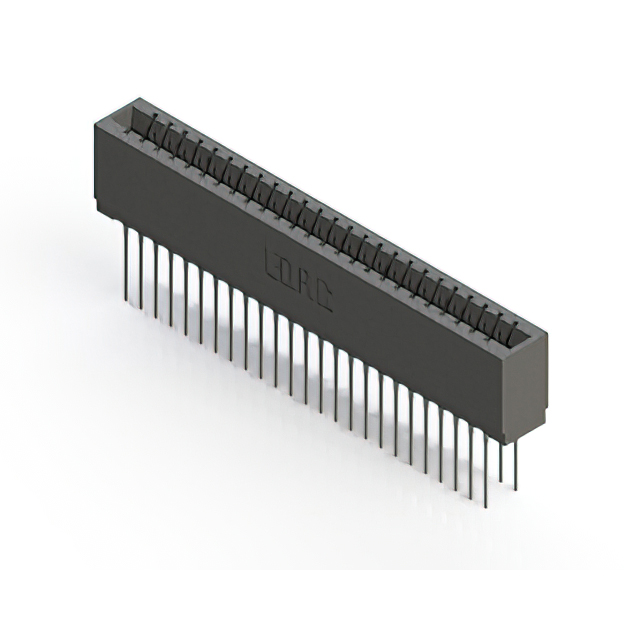

EDAC Inc. 746-050-553-201	2	Polyester Thermoplastic	Gold	Black	Female	25	3.18 mm	0.125 in	30 Áin	0.76 Ám	Dual	2	Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit Wire Wrap	Non Specified - Dual Edge
EDAC Inc. 746-050-520-106		Polyester Thermoplastic	Gold	Black	Female	50	3.18 mm	0.125 in	30 Áin	0.76 Ám	Single		Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit	Non Specified - Single Edge	1	1
EDAC Inc. 746-050-525-206	2	Polyester Thermoplastic	Gold	Black	Female	25	3.18 mm	0.125 in	30 Áin	0.76 Ám	Dual	2	Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit	Non Specified - Dual Edge
EDAC Inc. 746-050-545-101		Polyester Thermoplastic	Gold	Black	Female	50	3.18 mm	0.125 in	30 Áin	0.76 Ám	Single		Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit Wire Wrap	Non Specified - Single Edge	1	1
EDAC Inc. 746-050-525-501		Polyester Thermoplastic	Gold	Black	Female	50	3.18 mm	0.125 in	30 Áin	0.76 Ám	Single		Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit	Non Specified - Single Edge	1	1
EDAC Inc. 746-050-527-606	2	Polyester Thermoplastic	Gold	Black	Female	25	3.18 mm	0.125 in	30 Áin	0.76 Ám	Dual	2	Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit	Non Specified - Dual Edge

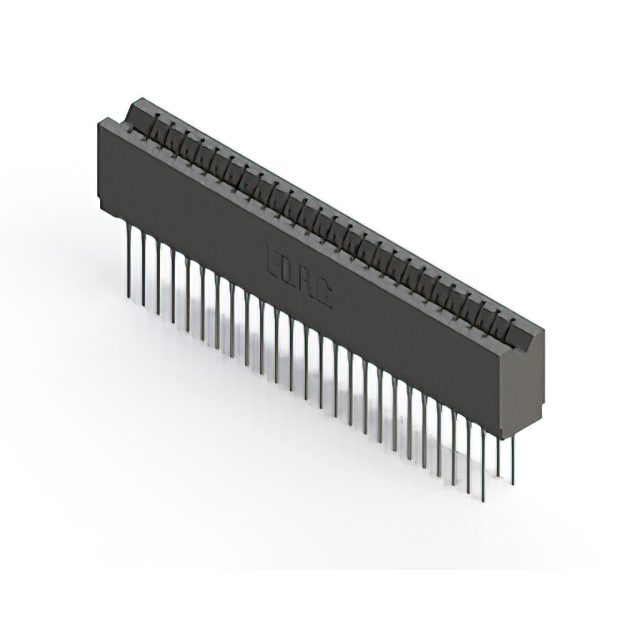

EDAC Inc. 746-050-541-206	2	Polyester Thermoplastic	Gold	Black	Female	25	3.18 mm	0.125 in	30 Áin	0.76 Ám	Dual	2	Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit Wire Wrap	Non Specified - Dual Edge

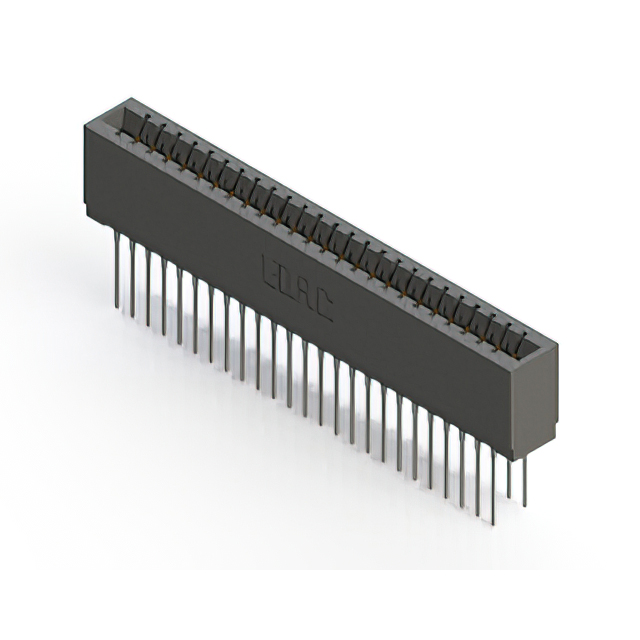

EDAC Inc. 746-050-545-201	2	Polyester Thermoplastic	Gold	Black	Female	25	3.18 mm	0.125 in	30 Áin	0.76 Ám	Dual	2	Copper Alloy	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	50	-40 C	105 ░C	Press-Fit Wire Wrap	Non Specified - Dual Edge
