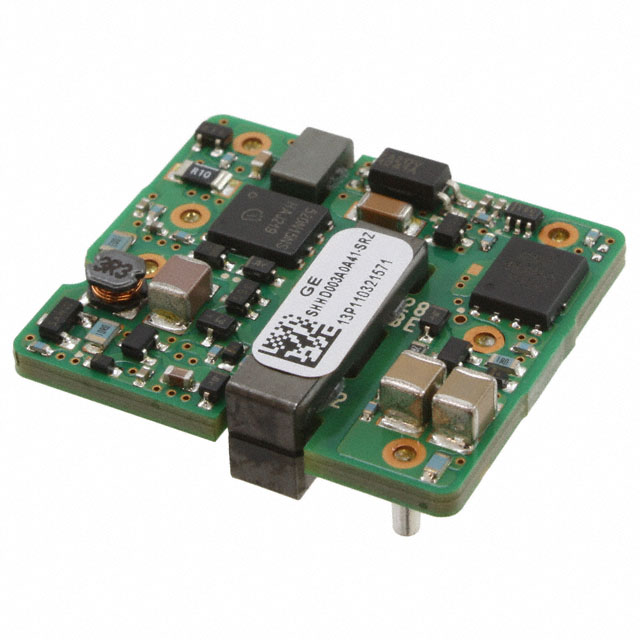

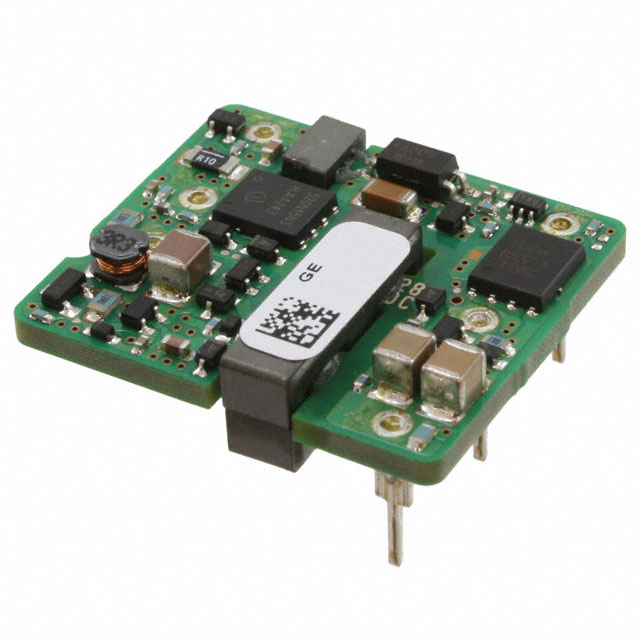

SHHD005 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 3.3V 17W
| Part | Control Features | Voltage - Isolation | Efficiency | Number of Outputs | Applications | Power (Watts) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) | Package / Case | Voltage - Output 1 | Voltage - Input (Min) [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | Active Low Enable | 2250 VDC | 87.5 % | 1 | ITE (Commercial) | 17 W | Through Hole | 85 °C | -40 C | OCP OTP OVP Remote On/Off UVLO | 75 V | 0.96 in | 24.4 mm | 0.34 in | 1.1 in | 27.9 mm | 8.5 mm | 5 A | 6-DIP Module | 3.3 V | 18 V | Isolated Module |
 OmniOn Power™ | Active Low Enable | 2250 VDC | 87.5 % | 1 | ITE (Commercial) | 15 W | Through Hole | 85 °C | -40 C | OCP OTP OVP Remote On/Off UVLO | 75 V | 0.96 in | 24.4 mm | 0.34 in | 1.1 in | 27.9 mm | 8.5 mm | 5 A | 6-DIP Module | 3.3 V | 18 V | Isolated Module |
OmniOn Power™ | Active Low Enable | 2250 VDC | 87.5 % | 1 | ITE (Commercial) | 15 W | Through Hole | 85 °C | -40 C | OCP OTP OVP Remote On/Off UVLO | 75 V | 0.96 in | 24.4 mm | 0.34 in | 1.1 in | 27.9 mm | 8.5 mm | 5 A | 6-DIP Module | 3.3 V | 18 V | Isolated Module |
OmniOn Power™ | Active Low Enable | 2250 VDC | 87.5 % | 1 | ITE (Commercial) | 17 W | Through Hole | 85 °C | -40 C | OCP OTP OVP Remote On/Off UVLO | 75 V | 0.96 in | 24.4 mm | 0.34 in | 1.1 in | 27.9 mm | 8.5 mm | 5 A | 6-DIP Module | 3.3 V | 18 V | Isolated Module |
