DC2C Series

Catalog

SWITCH SNAP ACTION SPDT 10A 125V

Part	Switch Function	Electrical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Circuit	Pretravel	Pretravel	Ingress Protection	Overtravel [custom]	Overtravel [custom]	Mechanical Life	Current Rating (Amps)	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Position	Operating Position	Operating Force

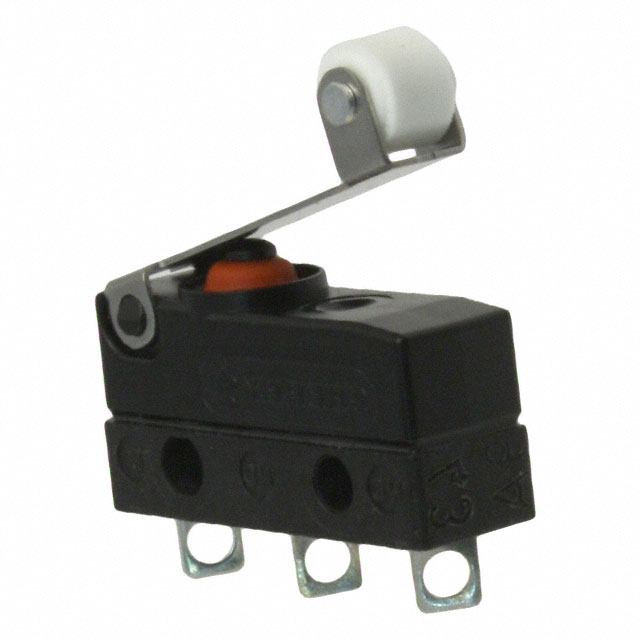

ZF Electronics DC2CA1RB	On-Mom	6000 Cycles	Solder Lug	120 °C	-40 C	Chassis Mount	Lever Roller	SPDT	5 mm	0.197 "	IP67 - Dust Tight Waterproof	0.06 "	1.5 mm	1000000 Cycles	10 A	0.031 in	0.8 mm	125 V	0.622 in	15.8 mm	163 gf

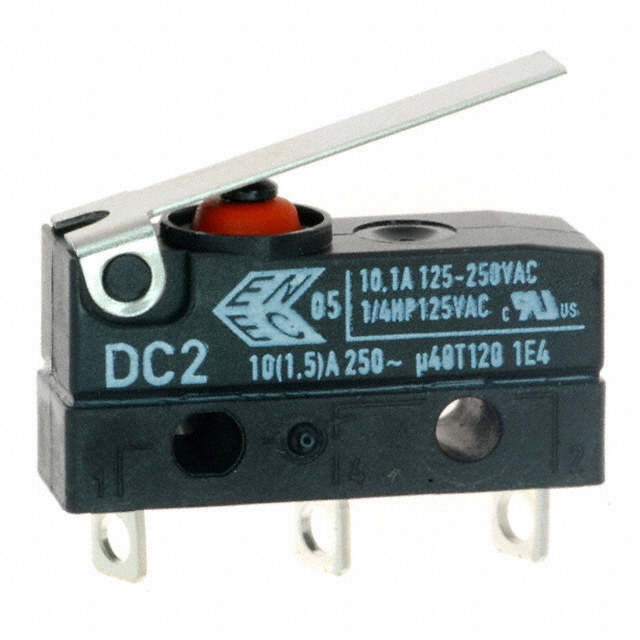

ZF Electronics DC2C-A1LB	On-Mom	6000 Cycles	Solder Lug	120 °C	-40 C	Chassis Mount	Lever Straight	SPDT	5 mm	0.197 "	IP67 - Dust Tight Waterproof	0.06 "	1.5 mm	1000000 Cycles	10 A	0.031 in	0.8 mm	125 V			153 gf

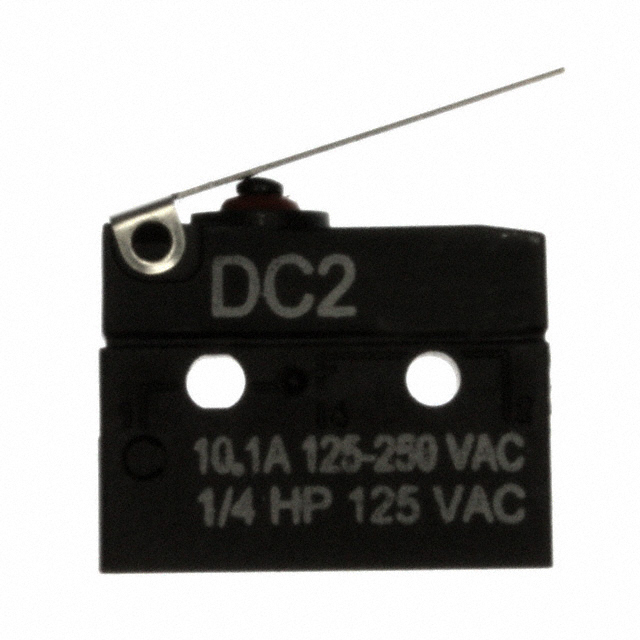

ZF Electronics DC2C-BWAD	On-Mom	6000 Cycles		120 °C	-40 C	Chassis Mount	Lever Straight	SPDT			IP67 - Dust Tight Waterproof			1000000 Cycles	10 A			125 V

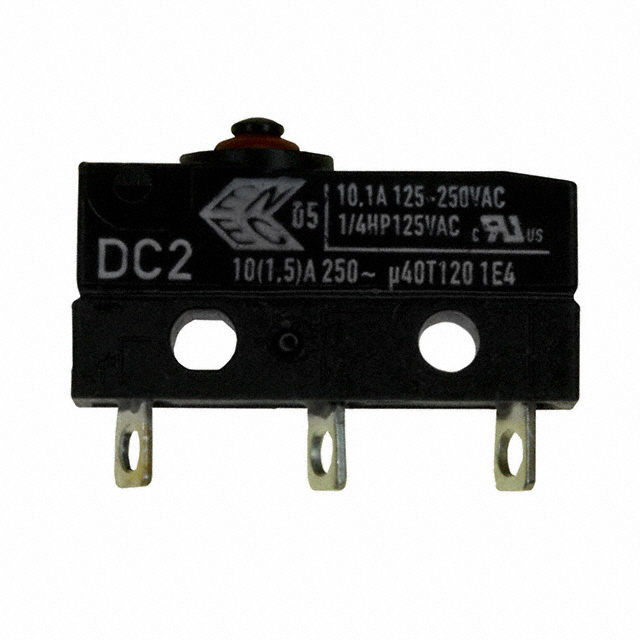

ZF Electronics DC2C-A1AA	On-Mom	6000 Cycles	Solder Lug	120 °C	-40 C	Chassis Mount	Round (Pin Plunger)	SPDT	1 mm	0.04 in	IP67 - Dust Tight Waterproof	0.025 in	0.6 mm	1000000 Cycles	10 A	0.004 in	0.1 mm	125 V	0.33 in	8.4 mm	340 gf
