84984 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN FFC FPC VERT 26POS 1MM PCB

Part	Housing Color	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Material	Mounting Type	Cable End Type	Termination	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch	Pitch	Flat Flex Type	Connector/Contact Type	Number of Positions	FFC, FCB Thickness

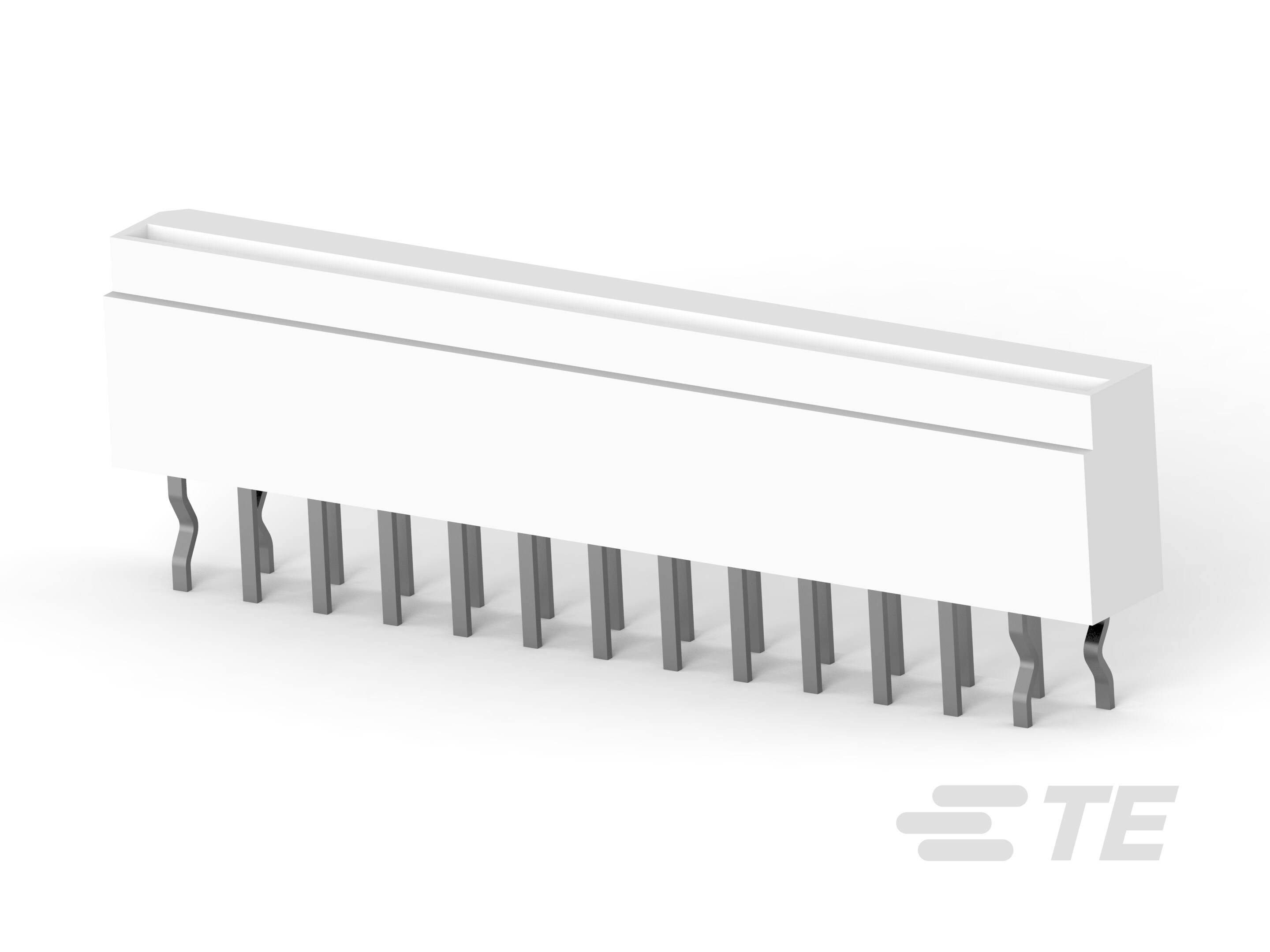

TE Connectivity AMP Connectors 2-84984-6	White	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 ░C	125 VDC	Phosphor Bronze	Through Hole	Straight	Kinked Pin	0.22 in	5.59 mm	Tin	1 mm	0.039 in	FFC FPC	Contacts Vertical - 1 Sided	26	0.3 mm
TE Connectivity AMP Connectors 2-84984-9	White	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 ░C	125 VDC	Phosphor Bronze	Through Hole	Straight	Kinked Pin	0.22 in	5.59 mm	Tin	1 mm	0.039 in	FFC FPC	Contacts Vertical - 1 Sided	29	0.3 mm

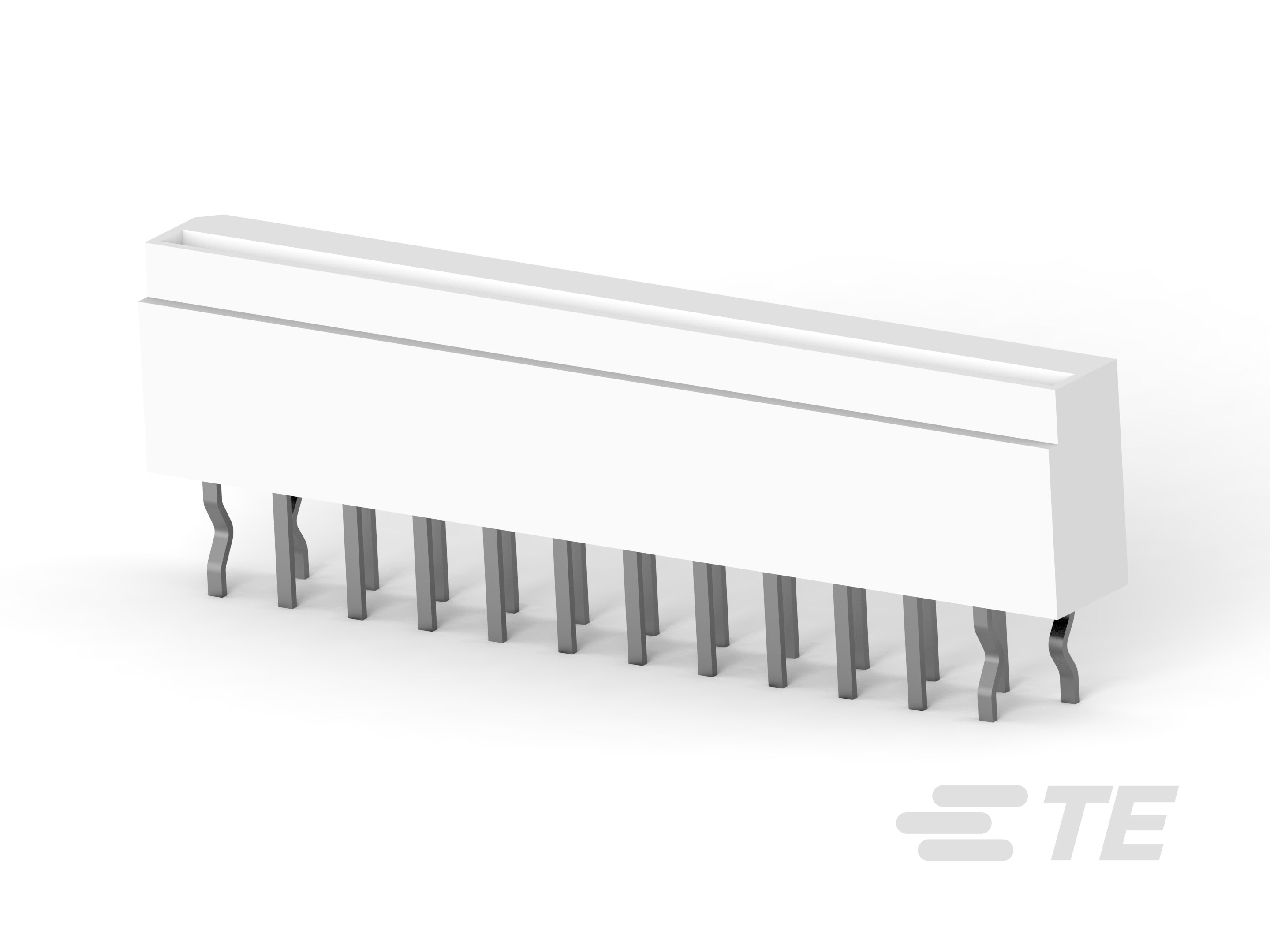

TE Connectivity AMP Connectors 2-84984-4	White	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 ░C	125 VDC	Phosphor Bronze	Through Hole	Straight	Kinked Pin	0.22 in	5.59 mm	Tin	1 mm	0.039 in	FFC FPC	Contacts Vertical - 1 Sided	24	0.3 mm

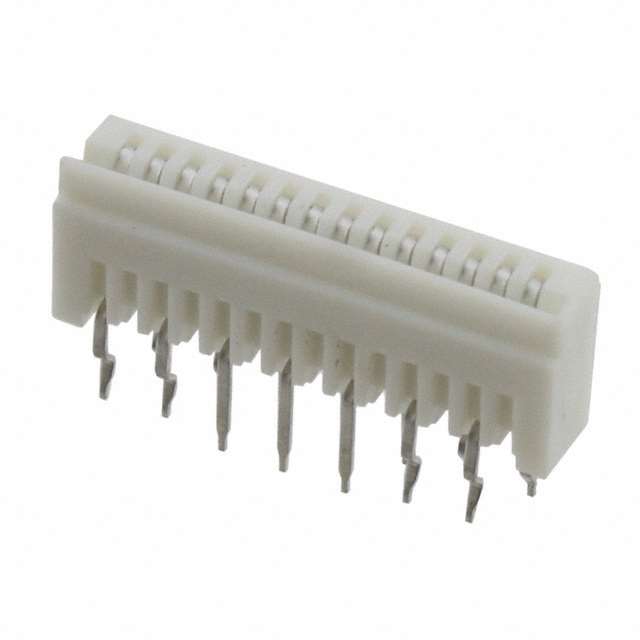

TE Connectivity AMP Connectors 1-84984-4	White	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 ░C	125 VDC	Phosphor Bronze	Through Hole	Straight	Kinked Pin	0.22 in	5.59 mm	Tin	1 mm	0.039 in	FFC FPC	Contacts Vertical - 1 Sided	14	0.3 mm
TE Connectivity AMP Connectors 84984-8	White	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 ░C	125 VDC	Phosphor Bronze	Through Hole	Straight	Kinked Pin	0.22 in	5.59 mm	Tin	1 mm	0.039 in	FFC FPC	Contacts Vertical - 1 Sided	8	0.3 mm

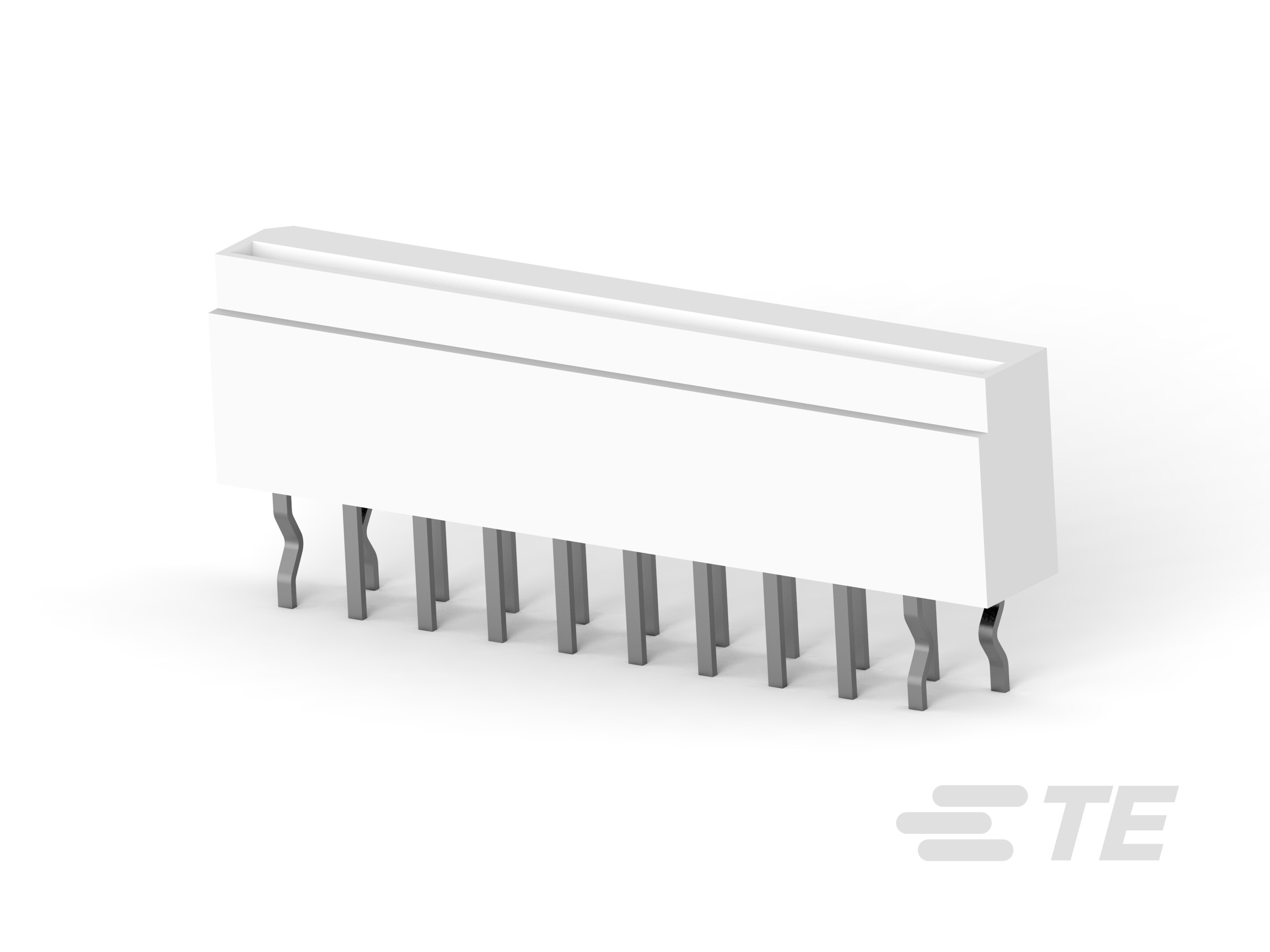

TE Connectivity AMP Connectors 2-84984-0	White	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 ░C	125 VDC	Phosphor Bronze	Through Hole	Straight	Kinked Pin	0.22 in	5.59 mm	Tin	1 mm	0.039 in	FFC FPC	Contacts Vertical - 1 Sided	20	0.3 mm

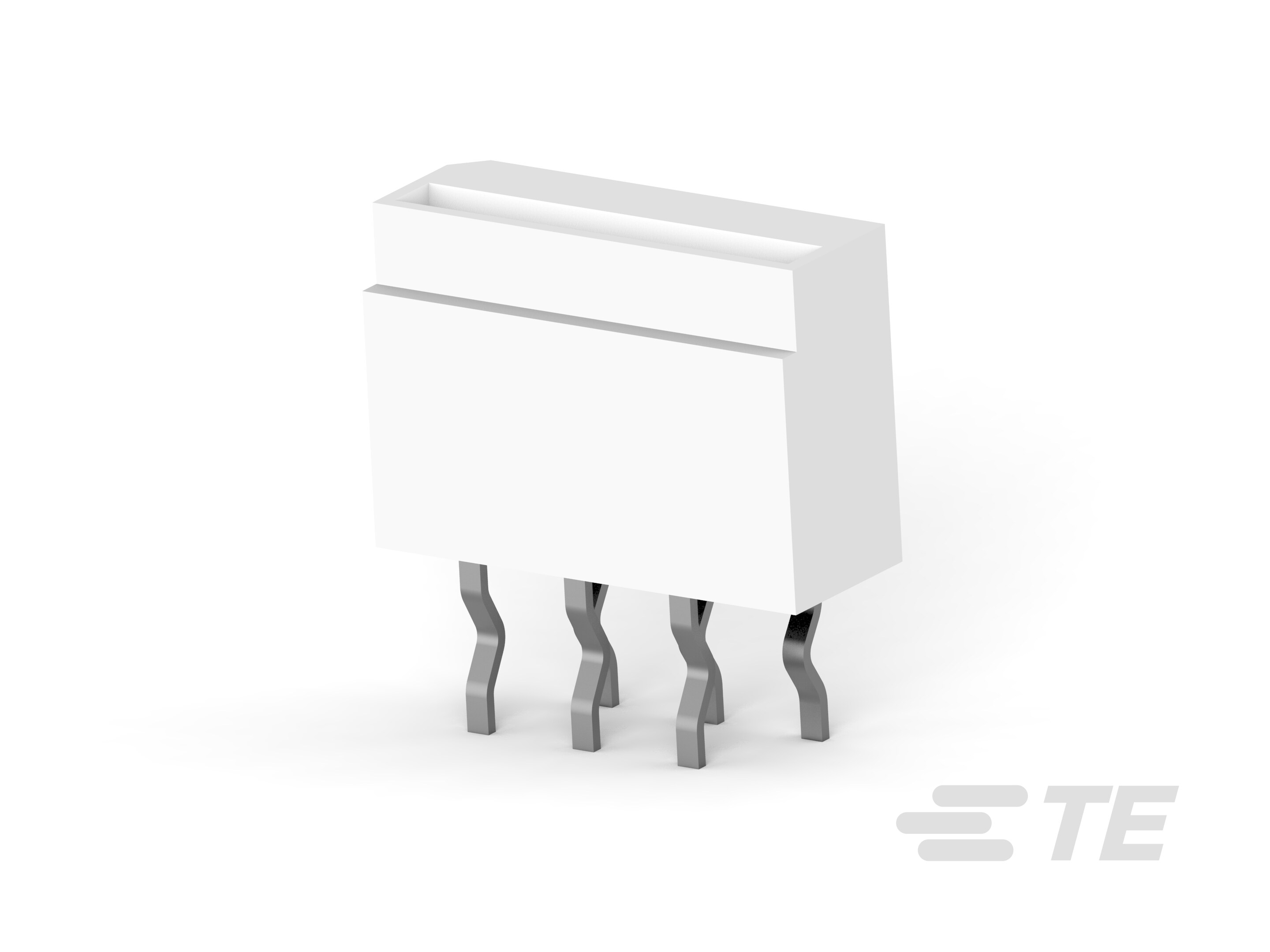

TE Connectivity AMP Connectors 84984-6	White	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-20 ░C	125 VDC	Phosphor Bronze	Through Hole	Straight	Kinked Pin	0.22 in	5.59 mm	Tin	1 mm	0.039 in	FFC FPC	Contacts Vertical - 1 Sided	6	0.3 mm
