PT6305 Series

Catalog

DC DC CONVERTER 3.3V 3A

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Package / Case	Operating Temperature [Max]	Current - Output (Max) [Max]	Efficiency	Type	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Input (Max) [Max]	Applications	Number of Outputs

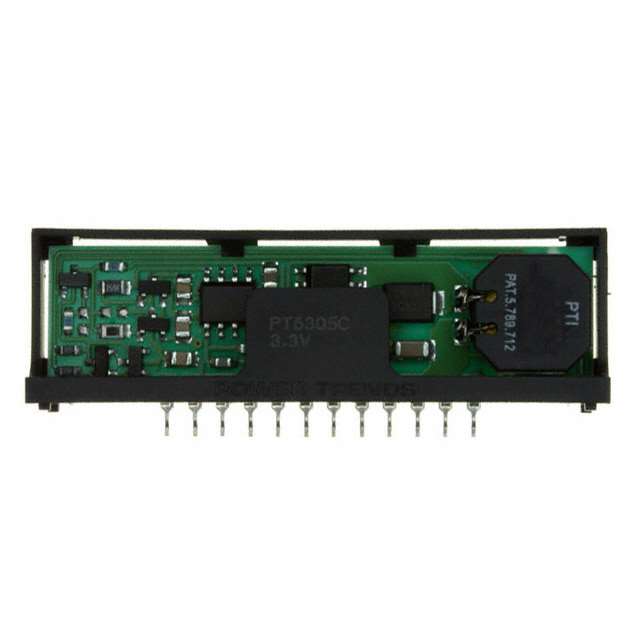

Texas Instruments PT6305C	17 mm	2.06 in	0.38 in	52.3 mm	0.67 in	9.7 mm	3.3 V	12-SIP SMD Module	70 °C	3 A	85 %	Non-Isolated PoL Module	4.5 V	Surface Mount	9 V	ITE (Commercial)	1
Texas Instruments PT6305R							3.3 V	12-SIP Module	70 °C	3 A	80 %	Non-Isolated PoL Module	4.5 V	Through Hole	9 V	ITE (Commercial)	1
Texas Instruments PT6305N	9.7 mm	2.06 in	0.67 in	52.3 mm	0.38 in	17 mm	3.3 V	12-SIP Module	70 °C	3 A	80 %	Non-Isolated PoL Module	4.5 V	Through Hole	9 V	ITE (Commercial)	1
Texas Instruments PT6305B							3.3 V	12-SIP SMD Module	70 °C	3 A	80 %	Non-Isolated PoL Module	4.5 V	Surface Mount	9 V	ITE (Commercial)	1
Texas Instruments PT6305CT	17 mm	2.06 in	0.38 in	52.3 mm	0.67 in	9.7 mm	3.3 V	12-SIP SMD Module	70 °C	3 A	80 %	Non-Isolated PoL Module	4.5 V	Surface Mount	9 V	ITE (Commercial)	1
Texas Instruments PT6305A	17 mm	2.06 in	0.38 in	52.3 mm	0.67 in	9.7 mm	3.3 V	12-SIP Module	70 °C	3 A	80 %	Non-Isolated PoL Module	4.5 V	Through Hole Right Angle	9 V	ITE (Commercial)	1
