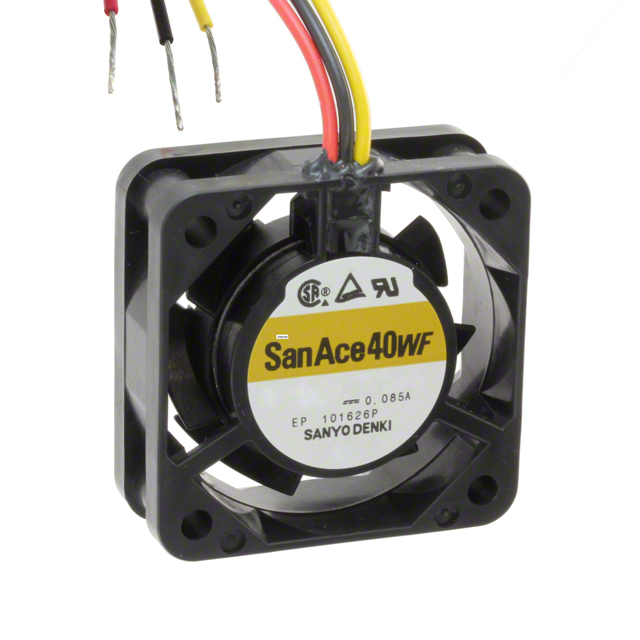

9WF0424 Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 20 MM, BALL BEARING, 7.77 CFM

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Power (Watts)	Weight [custom]	Weight [custom]	Termination	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Fan Type	Air Flow	Air Flow	Approval Agency	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [z]	Features	RPM	Bearing Type	Noise	Air Flow	Weight	Weight	Ingress Protection
Sanyo Denki America Inc. 9WF0424F6D01	Plastic	Plastic	0.076 A	40000 Hrs	1.82 W	0.111 lb	50.35 g	3 Wire Leads	20 mm	-20 ░C	70 °C	24 VDC	Tubeaxial	7.8 CFM	0.218 m³/min	CSA TUV UL	0.252 in H2O	62.8 Pa	40 mm	40 mm	Locked Rotor Sensor	11000 RPM	Ball	37 dB
Sanyo Denki America Inc. 9WF0424H6D01	Plastic	Plastic	110 mA	40000 Hrs	2.64 W	0.111 lb	50.35 g	3 Wire Leads	20 mm	-20 ░C	70 °C	24 VDC	Tubeaxial	9.2 CFM	0.258 m³/min	CSA TUV UL	0.361 in H2O	89.9 Pa	40 mm	40 mm	Locked Rotor Sensor	13100 RPM	Ball	42 dB
Sanyo Denki America Inc. 9WF0424H702	Plastic	Plastic	85 mA	40000 Hrs				2 Wire Leads	15 mm	-20 ░C	70 °C	24 VDC	Tubeaxial	6.9 CFM	0.193 m³/min	CSA TUV UL	0.32 in H2O	79.7 Pa	40 mm	40 mm		11300 RPM	Ball	38 dB(A)	6.9 CFM	0.078 lb	35.38 g	Oil Resistant
Sanyo Denki America Inc. 9WF0424H602	Plastic	Plastic	110 mA	40000 Hrs	2.64 W	0.111 lb	50.35 g	2 Wire Leads	20 mm	-10 °C	70 °C	24 VDC	Tubeaxial	9.2 CFM	0.258 m³/min	CSA TUV UL	0.361 in H2O	89.9 Pa	40 mm	40 mm		13100 RPM	Ball	42 dB				Oil Resistant
Sanyo Denki America Inc. 9WF0424H701	Plastic	Plastic	85 mA	40000 Hrs		0.077 lb	34.93 g	3 Wire Leads	15 mm	-20 ░C	70 °C	24 VDC	Tubeaxial	6.9 CFM	0.193 m³/min	CSA TUV UL	0.32 in H2O	79.7 Pa	40 mm	40 mm	Speed Sensor (Tach)	11300 RPM	Ball	38 dB(A)	6.9 CFM			Oil Resistant
Sanyo Denki America Inc. 9WF0424F601	Plastic	Plastic	0.076 A	40000 Hrs	1.82 W	0.111 lb	50.35 g	3 Wire Leads	20 mm	-20 ░C	70 °C	24 VDC	Tubeaxial	7.8 CFM	0.218 m³/min	CSA TUV UL	0.252 in H2O	62.8 Pa	40 mm	40 mm	Speed Sensor (Tach)	11000 RPM	Ball	37 dB				Oil Resistant
