NCP5181 Series

MOSFET / IGBT Drivers, High Voltage, High and Low Side, Dual Input

Catalog

MOSFET / IGBT Drivers, High Voltage, High and Low Side, Dual Input

Part	High Side Voltage - Max (Bootstrap) [Max]	Gate Type	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Package / Case	Package / Case [y]	Package / Case [x]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Input Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Drivers	Mounting Type	Driven Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Supplied Contents	Function	Type	Utilized IC / Part
ON Semiconductor NCP5181DR2G	600 V	MOSFET (N-Channel)	2.3 V	0.8 V	8-SOIC	3.9 mm	0.154 in	2.2 A	1.4 A	Independent	20 ns	40 ns	8-SOIC	Non-Inverting	20 V	10 VDC	2	Surface Mount	Half-Bridge	150 °C	-40 °C

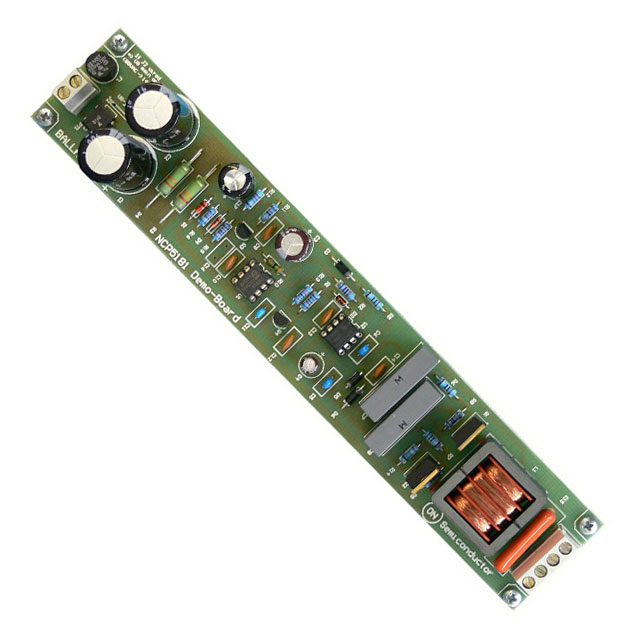

ON Semiconductor NCP5181BAL36WEVB																						Board(s)	Ballast Control	Opto/Lighting	NCP5181

Catalog

MOSFET / IGBT Drivers, High Voltage, High and Low Side, Dual Input

Key Features

• High Voltage Range: up to 600 V

• dV/dt Immunity 50 V/nsec

• Gate Drive Supply Range from 10 V to 20 V

• High and Low DRV Outputs

• Output Source / Sink Current Capability 1.1 A / 2.4 A

• 3.3 V and 5 V Input Logic Compatible

• Up to Vcc Swing on Input Pins

• Matched Propagation Delays between Both Channels

• Outputs in Phase with the Inputs

• Independent Logic Inputs to Accommodate All Topologies

• Under VCC LockOut (UVLO) for Both Channels

• Pin to Pin Compatible with IR2181(S)

Description

The NCP5181 is a High Voltage Power Mosfet Driver providing two outputs for direct drive of a 2 N-channel power Mosfets arranged in a half-bridge (or any other high side + low side configuration).It uses the bootstrap technique to insure a proper drive of the High side power switch. The driver works with 2 independent inputs to accomodate any topology (including half-bridge, asymmetrical half-bridge, active clamp and full bridge).
