8237 Series
Manufacturer: Belden Inc.
Beta
⌘K

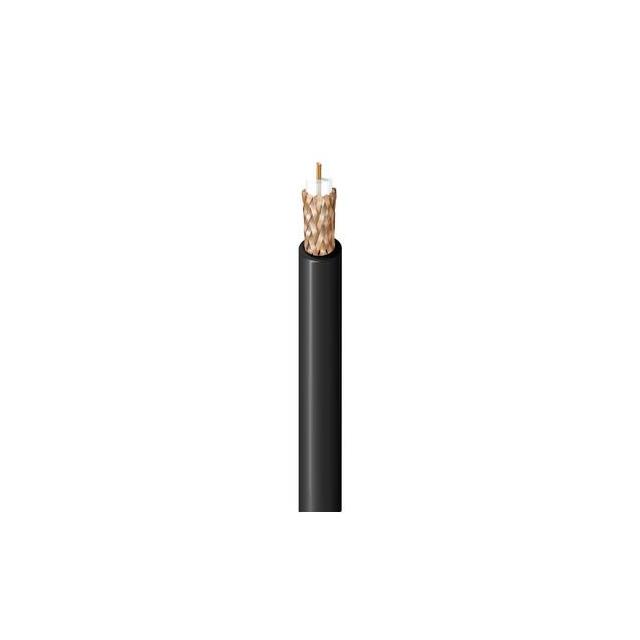

RG-8/U JAN-C-17A COAX
| Part | Conductor Material | VoP, Velocity of Propagation | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | Shield Material | Impedance | Shield Type | Cable Group | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Length [x] | Length [x] | Jacket (Insulation) Material | Conductor Strand | Wire Gauge | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 66 | -40 C | 75 ░C | 95 % | Copper Bare | 50 Ohms | Braid | RG-8 | Coaxial | 0.403 in | 10.24 mm | Black | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 7 Strands 21 AWG | 13 AWG | |||
Belden Inc. | Copper Bare | 66 | -40 C | 75 ░C | 95 % | Copper Bare | Braid | RG-8 | Coaxial | 0.403 in | 10.24 mm | Black | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 7 Strands 21 AWG | 13 AWG | 0.285 in | 7.24 mm | RF Signal |
