9391 Series

Manufacturer: Oupiin

Catalog

HIGH POWER AND SIGNAL CONNECTOR,

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions Loaded	Termination	Contact Shape	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Material	Insulation Material	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Finish - Post	Features	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height	Insulation Height

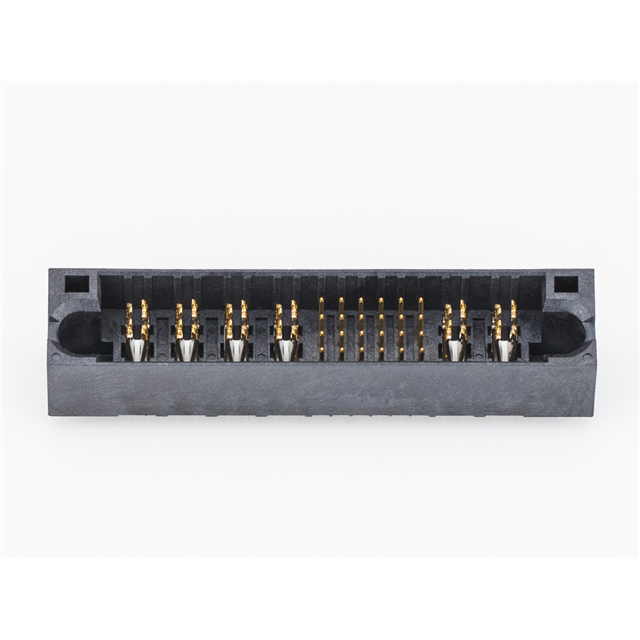

Oupiin 9391-A3S96CB30PA	2.03 µm	80 µin	Shrouded - 4 Wall	-40 C	105 ░C	Through Hole	All	Press-Fit	Square	Black	12.6 mm	0.496 in	Male Pin	0.1 in	2.54 mm	Header	0.076 µm	3 µin	4.35 mm	0.171 in	96	Brass	Liquid Crystal Polymer (LCP)	UL94 V-0	0.1 "	2.54 mm	0.27 in	6.86 mm	Gold	Tin

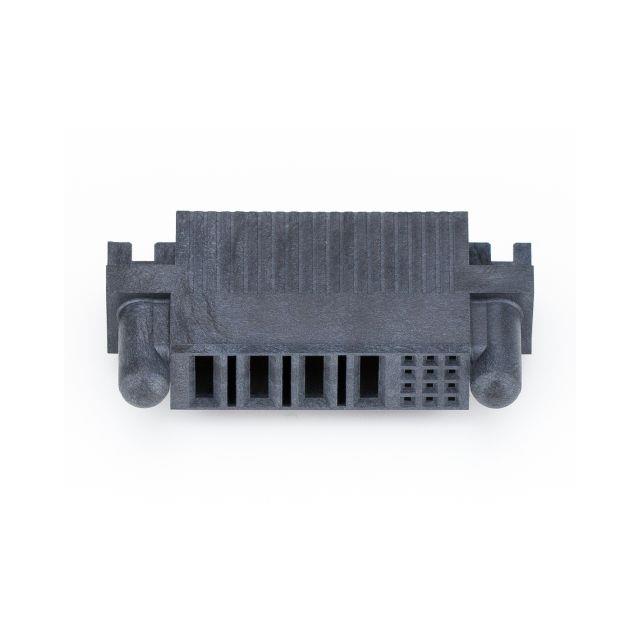

Oupiin 9391-A4S96CB30DA	2.03 µm	80 µin		-40 C	105 ░C	Right Angle Through Hole	All	Solder	Square	Black	11.94 mm	0.47 in	Female Socket	0.1 in	2.54 mm	Receptacle	0.076 µm	3 µin			96	Phosphor Bronze	Liquid Crystal Polymer (LCP)	UL94 V-0	0.1 "	2.54 mm			Gold	Tin	Mating Guide	0.135 in	3.43 mm

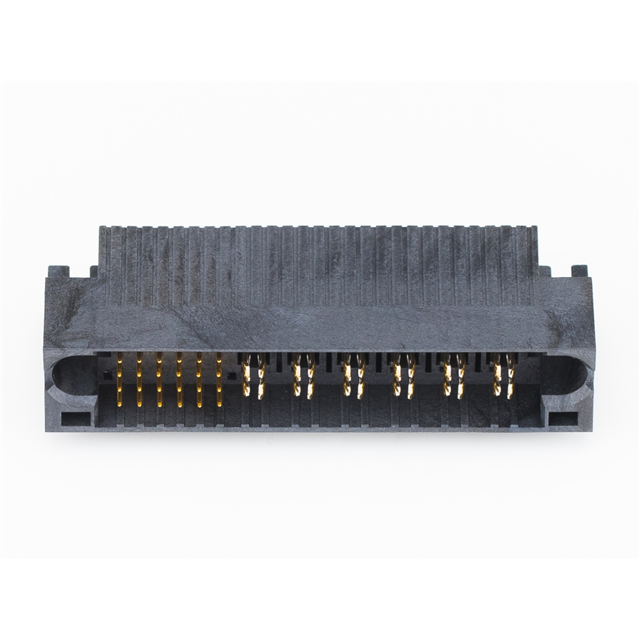

Oupiin 9391-A1S08P02CB30DLA-HP			Shrouded - 4 Wall	-40 C	105 ░C	Right Angle Through Hole	All	Solder	Square	Black			Male Pin			Header	0.076 µm	3 µin			10	Brass	Liquid Crystal Polymer (LCP)	UL94 V-0			0.27 in	6.86 mm	Gold	Tin	Board Lock	0.135 in	3.43 mm	14.58 mm	0.574 in
