RT-1145 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

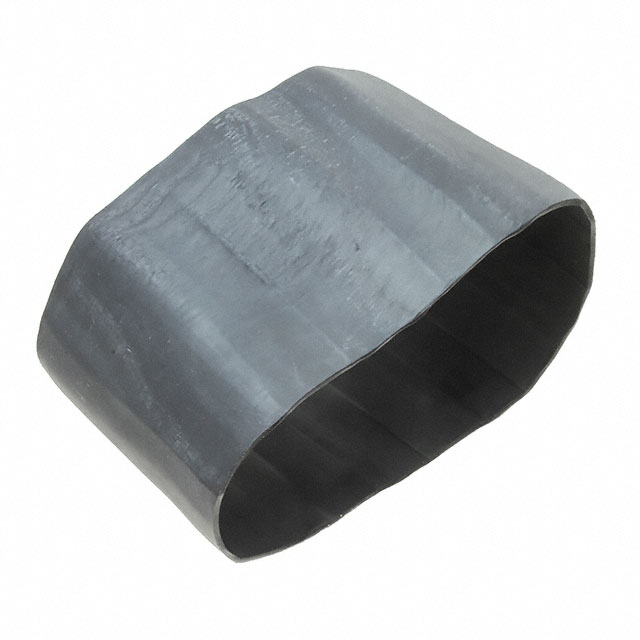

HEATSHRINK 2.37" X 0.208' BLACK

Part	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Length [x]	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Recovered Wall Thickness	Recovered Wall Thickness	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Length	Length	Length	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-12-0	Tubing Flexible	60.2 mm	2.37 in	175 °C	2.5 in	63.5 mm	2.496 in	200 °C	-40 °C	1.78 mm	0.07 "	Black	16 mm	0.63 "	Fluoroelastomer (FKM)	3.6	1
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-15-0	Tubing Flexible	60.2 mm	2.37 in					200 °C	-40 °C	1.78 mm	0.07 "	Black	16 mm	0.63 "	Fluoroelastomer (FKM)	3.6	1	25.4 mm	0.083 ft	1 in
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-27-0-CS6302	Tubing Flexible	25.4 mm	1 in	175 °C	2.5 in	63.5 mm	2.496 in	200 °C	-40 °C	0.043 in		Black	6.35 mm	0.25 in	Fluoroelastomer (FKM)	3.6	1				1.09 mm
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-20-CS6450	Tubing Flexible	34.8 mm	1.37 in					200 °C	-40 °C	1.37 mm	0.054 in	Black			Fluoroelastomer (FKM)	3.6	1	25.4 mm	0.083 ft	1 in		9.65 mm	0.38 in
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-22-0	Tubing Flexible	31.75 mm	1.25 in	175 °C	2.5 in	63.5 mm	2.496 in	200 °C	-40 °C	1.19 mm	0.047 "	Black	7.87 mm	0.31 "	Fluoroelastomer (FKM)	3.6	1
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-25-0-CS6450	Tubing Flexible	31.75 mm	1.25 in	175 °C				200 °C	-40 °C	1.19 mm	0.047 "	Black	7.87 mm	0.31 "	Fluoroelastomer (FKM)	3.6	1	25.4 mm	0.083 ft	1 in
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-20-0	Tubing Flexible	34.8 mm	1.37 in					200 °C	-40 °C	1.37 mm	0.054 in	Black			Fluoroelastomer (FKM)	3.6	1	25.4 mm	0.083 ft	1 in		9.65 mm	0.38 in
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-32-CS6302	Tubing Flexible	50.8 mm	2 in	175 °C	2.5 in	63.5 mm	2.496 in	200 °C	-40 °C	1.65 mm	0.065 in	Black	12.7 mm	0.5 in	Fluoroelastomer (FKM)	3.6	1
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-40-0	Tubing Flexible	31.75 mm	1.25 in	175 °C	4 "	101.6 mm	0.333 ft	200 °C	-40 °C	1.19 mm	0.047 "	Black	7.87 mm	0.31 "	Fluoroelastomer (FKM)	3.6	1
TE Connectivity Aerospace, Defense and Marine RT-1145-OX-19-0-CS6302	Tubing Flexible	34.8 mm	1.37 in	175 °C				200 °C	-40 °C	1.37 mm	0.054 in	Black			Fluoroelastomer (FKM)	3.6	1	38.1 mm	0.125 '	1.5 "		9.65 mm	0.38 in
