69190 Series

Catalog

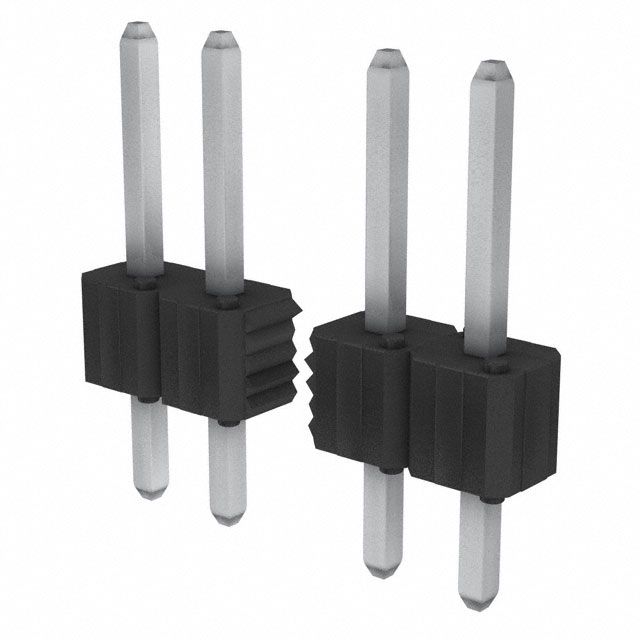

BERGSTIK II

...

Part	Contact Finish - Mating	Contact Shape	Insulation Material	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Current Rating (Amps)	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shrouding	Number of Positions	Material Flammability Rating	Contact Material	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination
Amphenol ICC (FCI) 69190-107HLF	Gold or Gold GXT™	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1	-65 ░C	130 °C	0.23 in	5.84 mm	3 A	Black	30 Áin	0.76 Ám	Header	Unshrouded	7	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm
Amphenol ICC (FCI) 69190-120HLF	Gold or Gold GXT™	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1	-65 ░C	130 °C	0.23 in	5.84 mm	3 A	Black	30 Áin	0.76 Ám	Header	Unshrouded	20	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
Amphenol ICC (FCI) 69190-212HLF	Gold or Gold GXT™	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1	-65 ░C	130 °C	0.23 in	5.84 mm	3 A	Black	15 µin	0.38 µm	Header	Unshrouded	12	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
Amphenol ICC (FCI) 69190-404H		Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1			0.23 in	5.84 mm		Black	100 çin	2.54 çm	Header	Unshrouded	4	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
Amphenol ICC (FCI) 69190-108HLF	Gold or Gold GXT™	Square		0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1	-65 ░C	130 °C	0.23 in	5.84 mm	3 A	Black	30 Áin	0.76 Ám	Header	Unshrouded	8	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
Amphenol ICC (FCI) 69190-110	Gold or Gold GXT™	Square		0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1			0.23 in	5.84 mm		Black	30 Áin	0.76 Ám	Header	Unshrouded	10	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
Amphenol ICC (FCI) 69190-410		Square		0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1	-65 ░C	130 °C	0.23 in	5.84 mm	3 A	Black	100 çin	2.54 çm	Header	Unshrouded	10	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
Amphenol ICC (FCI) 69190-207HLF	Gold or Gold GXT™	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1	-65 ░C	130 °C	0.23 in	5.84 mm	3 A	Black	15 µin	0.38 µm	Header	Unshrouded	7	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
Amphenol ICC (FCI) 69190-210	Gold or Gold GXT™	Square		0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1			0.23 in	5.84 mm		Black	15 µin	0.38 µm	Header	Unshrouded	10	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
Amphenol ICC (FCI) 69190-208HLF	Gold or Gold GXT™	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	0.45 "	11.43 mm	Male Pin	0.1 in	2.54 mm	All	Through Hole	1	-65 ░C	130 °C	0.23 in	5.84 mm	3 A	Black	15 µin	0.38 µm	Header	Unshrouded	8	UL94 V-0	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	Press-Fit Solder
