PH1 Series

Manufacturer: Adam Tech

Catalog

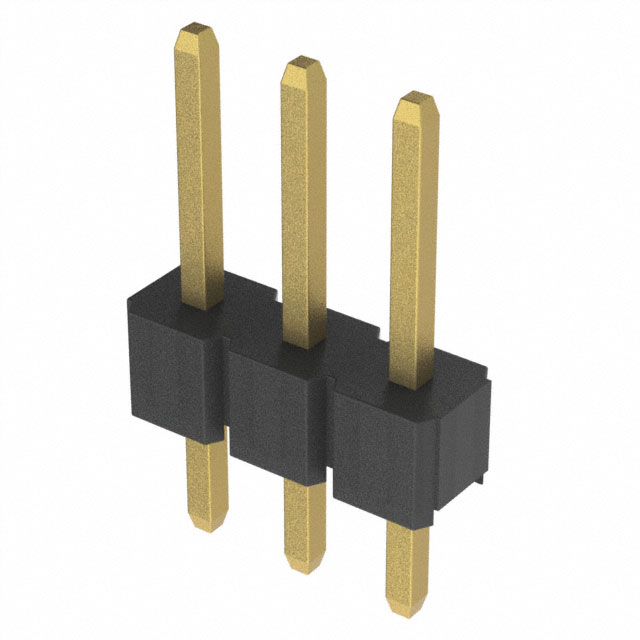

CONN HEADER VERT 3POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Material	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Finish - Mating	Termination	Voltage Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Shrouding	Mounting Type	Number of Positions	Material	Number of Contacts	Contact Finish	Pitch	Pitch
Adam Tech PH1-03-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole
Adam Tech PH1-08-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole	8
Adam Tech PH1-06-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole	6

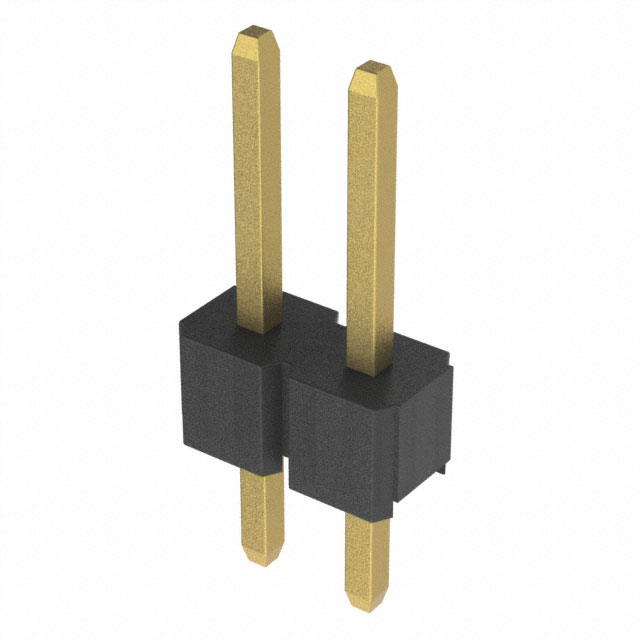

Adam Tech PH1-02-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole	2
Adam Tech PH1-17-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole
Adam Tech PH1-07-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole	7
Adam Tech PH1-18-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole	18
Adam Tech PH1-12-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole	12

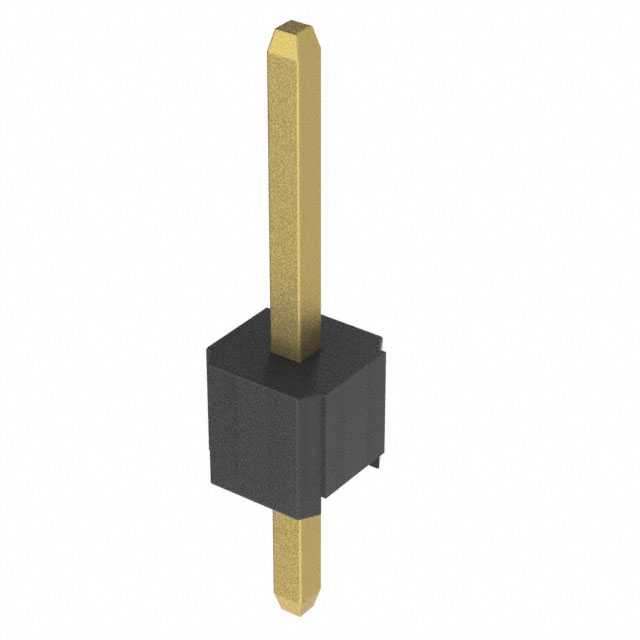

Adam Tech PH1-01-UA	Flash	Brass	Gold	UL94 V-0	Flash	0.1 "	2.54 mm	Push-Pull	11.54 mm	0.454 "	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	250 VAC	Male Pin	-40 C	105 ░C	Square	1	Header	6 mm	0.236 in	3.05 mm	0.12 in	3 A	Black	All	0.098 "	2.5 mm	Unshrouded	Through Hole	1
Adam Tech PH1-3B-08-MVF-4360																			1	Piston											Surface Mount		Brass	8	Gold	0.1 "	2.54 mm
