3009P Series

Catalog

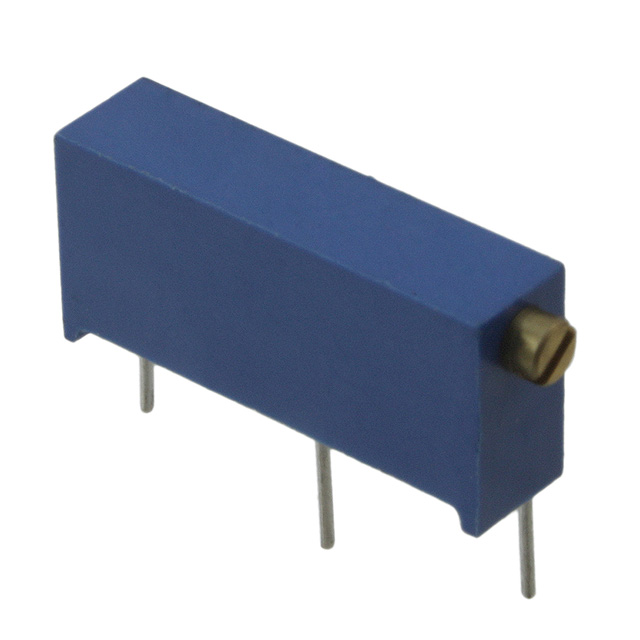

TRIMMER 20 OHM 0.75W PC PIN SIDE

Part	Termination Style	Power (Watts)	Power (Watts)	Mounting Type	Number of Turns	Tolerance	Resistive Material	Resistance	Temperature Coefficient	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Bourns Inc. 3009P-1-200	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	20 Ohms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-204	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	200000 Ohms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-104	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	100 kOhms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-204LF	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	200000 Ohms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-501	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	0.5 kOhms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-503	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	50000 Ohms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-203ZLF	PC Pins	3/4W	0.75 W	Panel Mount Through Hole	15	10 %	Cermet	20 kOhms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-201LF	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	200 Ohms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-254	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	250000 Ohms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
Bourns Inc. 3009P-1-105	PC Pins	3/4W	0.75 W	Through Hole	15	10 %	Cermet	1 MOhms	100 ppm/°C	Side Adjustment	8.98 mm	4.83 mm	0.19 in	0.354 in
