2081773 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

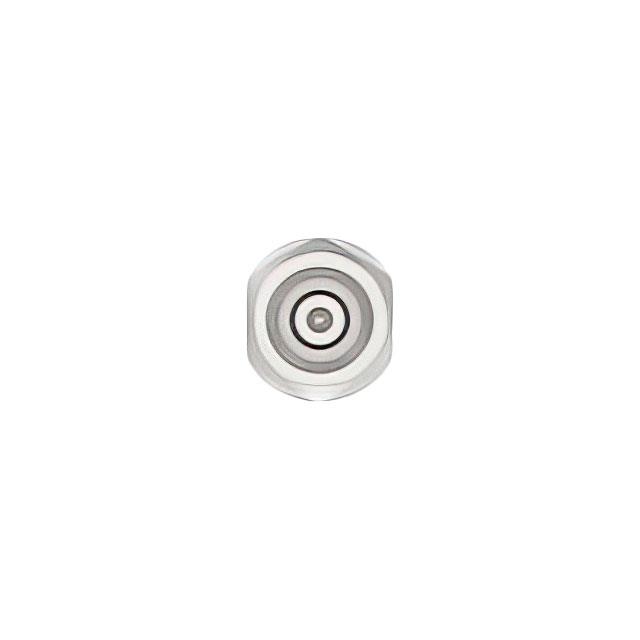

RF / COAXIAL ADAPTER, 1MM COAXIAL, PLUG, 1MM COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM
| Part | Convert From (Adapter End) | Convert From (Adapter End) | Style | Dielectric Material | Frequency - Max [Max] | Mounting Type | Adapter Type | Impedance | Center Contact Plating | Conversion Type | Center Gender | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Convert To (Adapter End) | Convert To (Adapter End) | Mating Cycles | Adapter Series [Min] | Adapter Series [Max] | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 mm | Plug Male Pin | Straight | Polyetherimide (PEI) | 110 GHz | Free Hanging (In-Line) | Plug to Plug | 50 Ohms | Gold | Same Series | Male to Male | 125 °C | -40 °C | Beryllium Copper | 1 mm | Male Pin | 500 | 1.0/2.3 | 1.0/2.3 | Stainless Steel |
