HEW.LM Series
Manufacturer: LEMO
Beta
⌘K
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
| Part | Connector Type | Shielding | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Features | Mounting Feature | Insert Material | Shell Size - Insert | Color | Applications | Contact Material | Shell Material | Number of Positions | Ingress Protection | Contact Finish - Mating | Mounting Type | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

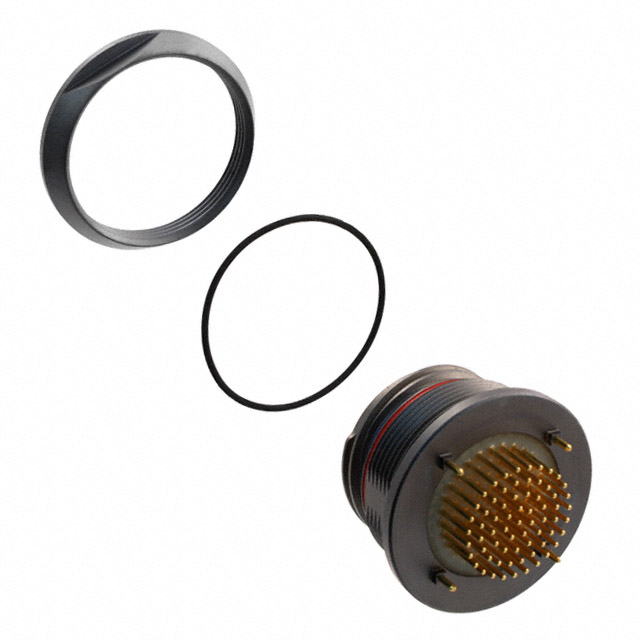

 LEMO | Receptacle Female Sockets | Shielded | 2.5 A | -20 C | 80 C | W | Potted | Bulkhead - Front Side Nut | Polyetheretherketone (PEEK) | 368 | Gray | Aerospace Automotive Aviation Military | Bronze | Aluminum Alloy | 68 | IP68 - Dust Tight Waterproof | Gold | Panel Mount Through Hole | Solder | 59 Áin | 1.5 Ám | Nickel | Metal |
