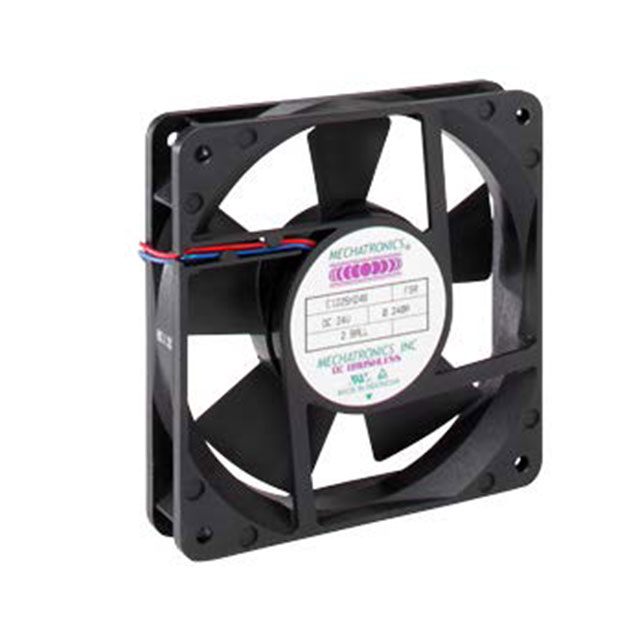

E1225 Series

Catalog

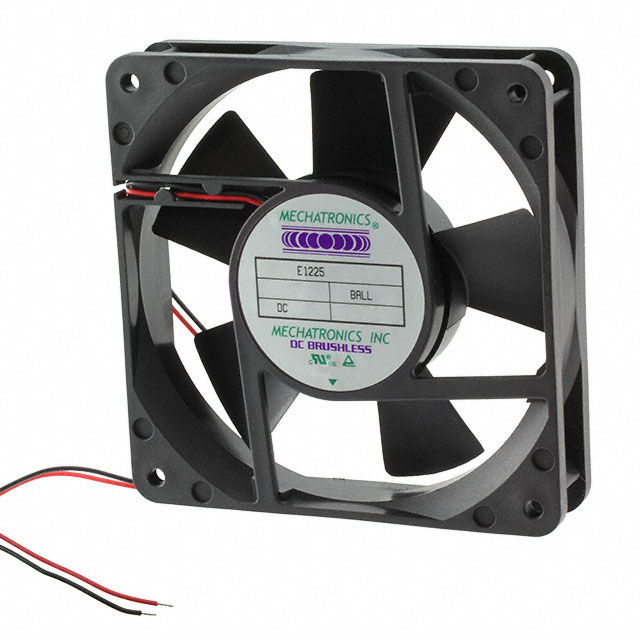

FAN AXIAL 120X25MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Noise	Fan Type	Air Flow	Air Flow	Termination	Static Pressure	Static Pressure	Voltage - Rated	Weight	Weight	RPM	Bearing Type	Features
Mechatronics Fan Group E1225L12B-FSR-CC	0.142 A	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	32 dB	Tubeaxial	1.54 mł/min	55 CFM	2 Wire Leads	29.9 Pa	0.12 in H2O	12 VDC	197.77 g	0.436 lb	1800 RPM	Ball	Conformal Coating Thermal Overload Protector (TOP)
Mechatronics Fan Group E1225L12B-FSR	0.142 A	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	32 dB	Tubeaxial	1.54 mł/min	55 CFM	2 Wire Leads	29.9 Pa	0.12 in H2O	12 VDC	196.86 g	0.434 lb	1800 RPM	Ball	Thermal Overload Protector (TOP)
Mechatronics Fan Group E1225M05B2-FSR	600 mA	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	36 dB	Tubeaxial	1.88 m³/min	67 CFM	3 Wire Leads	45 Pa	0.18 in H2O	5 V	197.77 g	0.436 lb	2200 RPM	Ball	Locked Rotor Sensor Thermal Overload Protector (TOP)
Mechatronics Fan Group E1225E12B3-FSR	580 mA	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	44 dB(A)	Tubeaxial	2.6 mł/min	93 CFM	2 Wire Leads	69.7 Pa	0.28 in H2O	12 VDC	196.86 g	0.434 lb	3000 RPM	Ball	Thermal Overload Protector (TOP) Thermistor
Mechatronics Fan Group E1225E12B1-FSR-TTL	580 mA	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	44 dB(A)	Tubeaxial	2.6 mł/min	93 CFM	3 Wire Leads	69.7 Pa	0.28 in H2O	12 VDC	196.86 g	0.434 lb	3000 RPM	Ball	Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group E1225S05B1-FSR	0.22 A	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	28 dB	Tubeaxial	1.23 m³/min	44 CFM	3 Wire Leads	22.4 Pa	0.09 in H2O	5 V	197.77 g	0.436 lb	1400 RPM	Ball	Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group E1225S12B1-FSR	100 mA	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	28 dB	Tubeaxial	1.23 m³/min	44 CFM	3 Wire Leads	22.4 Pa	0.09 in H2O	12 VDC	196.86 g	0.434 lb	1400 RPM	Ball	Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group E1225E12B1+6-FSR	580 mA	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	44 dB(A)	Tubeaxial	2.6 mł/min	93 CFM	4 Wire Leads	69.7 Pa	0.28 in H2O	12 VDC	196.86 g	0.434 lb	3000 RPM	Ball	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group E1225E12B-FSR	580 mA	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	44 dB(A)	Tubeaxial	2.6 mł/min	93 CFM	2 Wire Leads	69.7 Pa	0.28 in H2O	12 VDC	196.86 g	0.434 lb	3000 RPM	Ball	Thermal Overload Protector (TOP)
Mechatronics Fan Group E1225S24B-FSR	85 mA	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	120 mm	120 mm	25 mm	28 dB	Tubeaxial	1.23 m³/min	44 CFM	2 Wire Leads	22.4 Pa	0.09 in H2O	24 VDC	196.86 g	0.434 lb	1400 RPM	Ball	Thermal Overload Protector (TOP)
