SGA25U24 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

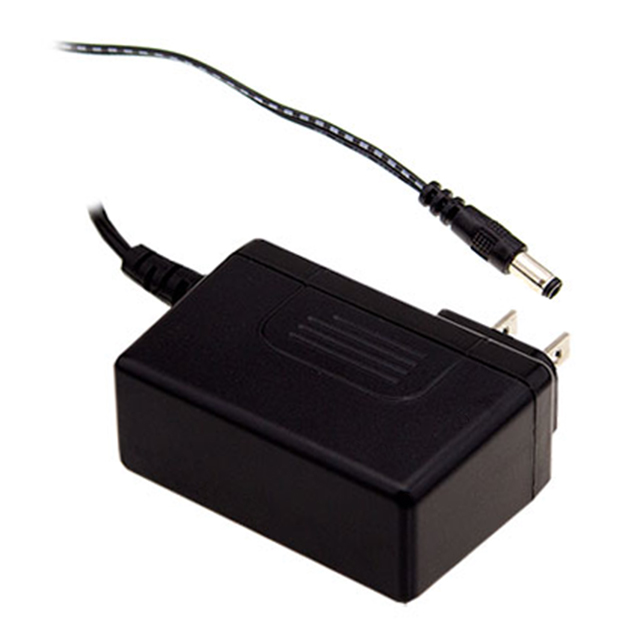

AC/DC WALL MOUNT ADAPTER 24V 25W
| Part | Approval Agency | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Cord Length | Cord Length | No Load Power Consumption | Output Connector [x] | Output Connector [diameter] | Output Connector | Input Connector | Current - Output (Max) [Max] | Form | Efficiency | Region Utilized | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Input Type | Polarization | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | CB cULus | ITE (Commercial) | -20 ░C | 60 °C | 70.9 " | 1.8 m | 75 mW | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | NEMA 1-15P | 1.04 A | Wall Mount | Level VI | North America | 25 W | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | Fixed Blade | Positive Center | 24 V | 264 VAC | 90 VAC |
