C2777 Series

Catalog

TOOL HAND CRIMPER 22-26AWG

Part	For Use With/Related Products	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Type	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Ratcheting	Wire Entry Location	Tool Method

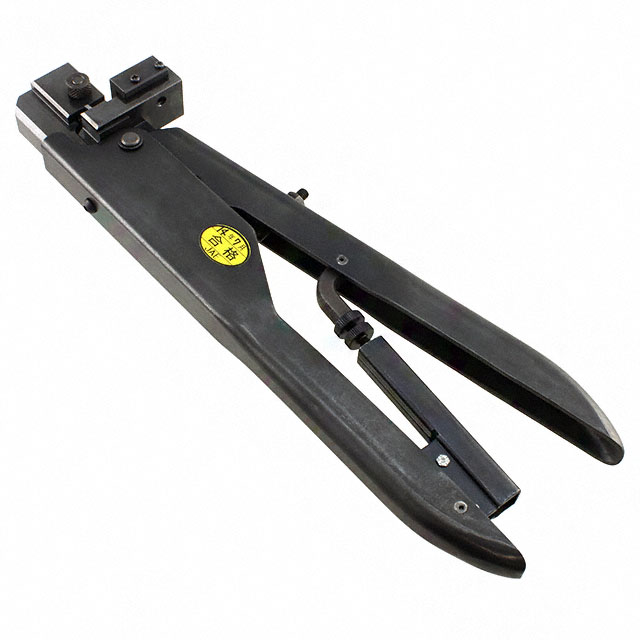

JAE Electronics C2777-CT150-4-ES9	Rectangular Contacts	22 AWG	26 AWG	Hand Crimper
JAE Electronics C2777-CT150-19-HB03	Rectangular Contacts	24 AWG	30 AWG	Hand Crimper	1.5 mm˛	0.6 mm˛	1.5 mm²	0.6 mm²

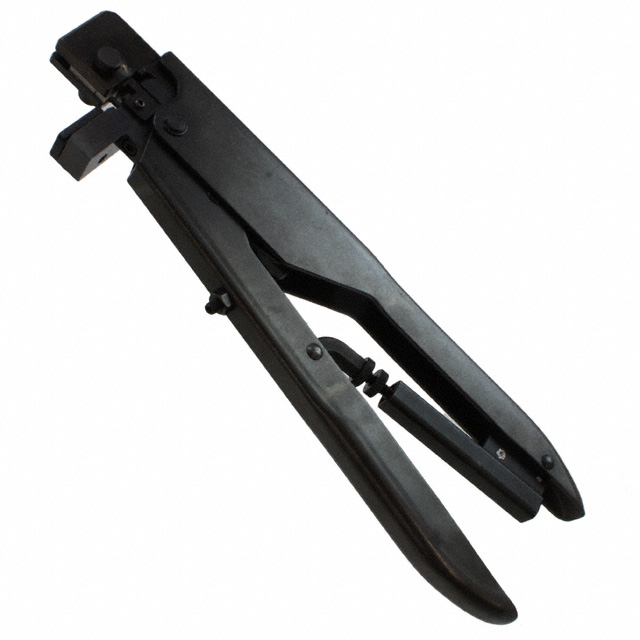

JAE Electronics C2777-CT150-4-ES5	Solid State Lighting Contacts	24 AWG	28 AWG	Hand Crimper					Ratchet	Side Entry
JAE Electronics C2777-CT150-19B-HB03	Rectangular Contacts	24 AWG	30 AWG	Hand Crimper			1.5 mm²	0.6 mm²
JAE Electronics C2777-3502-MX23-2	Rectangular Contacts	16 AWG	22 AWG	Applicator for Bench Press							Automated
JAE Electronics C2777-3502-ES5-2	Solid State Lighting Contacts			Applicator for Bench Press							Automated

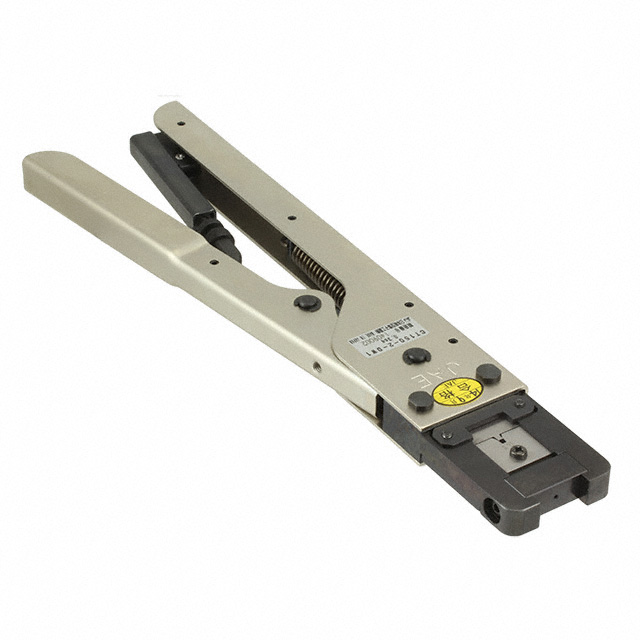

JAE Electronics C2777-CT150-2-DW1				Hand Crimper
