M80-5C1 Series

Catalog

6+2 POS. MALE 24-28AWG+20AWG CABLE CONN. KIT, PANEL MOUNT ROHS COMPLIANT: YES

Part	Wire Gauge [Min]	Wire Gauge [Max]	Color	Features	Contact Finish	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Cable Termination	Mounting Type	Pitch	Pitch	Wire Type	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows [custom]	Row Spacing	Row Spacing	Fastening Type

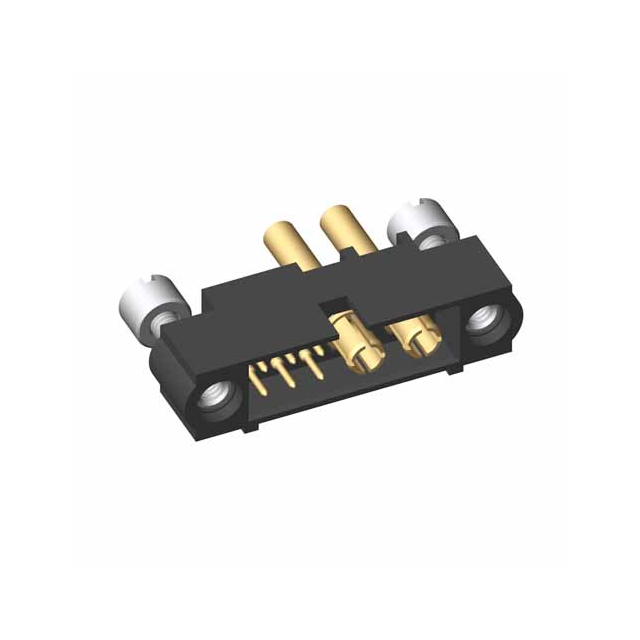

Harwin Inc. M80-5C10605M3-02-339-00-000	17.5 AWG	20 AWG	Black	Jackscrews	Gold	Plug	1	0.25 Ám	10 Áin	Coaxial Male Pin	Crimp	Panel Mount	4 mm	0.157 in	Coaxial	8

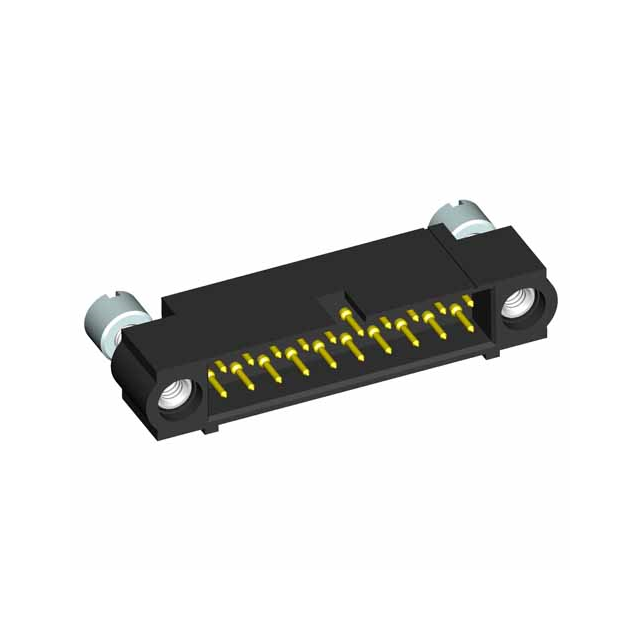

Harwin Inc. M80-5C12005M3	24 AWG	28 AWG	Black	Jackscrews	Gold	Header		0.25 Ám	10 Áin	Male Pin	Crimp	Panel Mount			Discrete	20	0.079 in	2 mm	2	2 mm	0.079 in

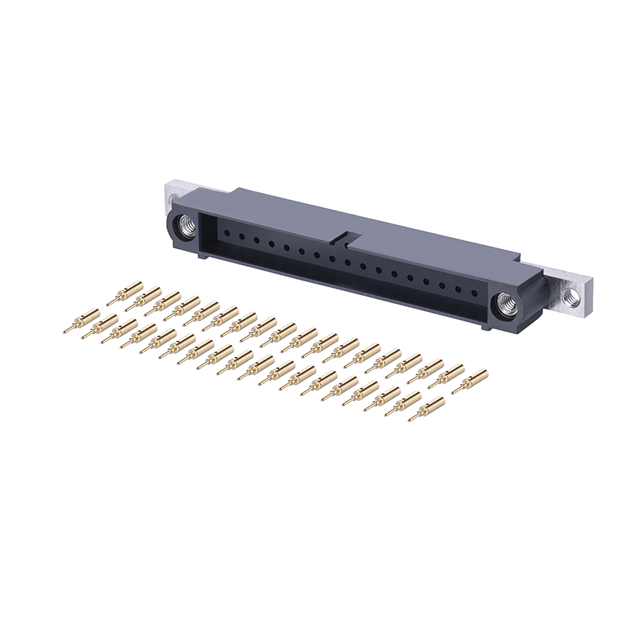

Harwin Inc. M80-5C13605MU	24 AWG	28 AWG	Black	Mounting Flange	Gold	Plug				Male Pin	Crimp	Panel Mount			Discrete	36	0.079 in	2 mm	2	2 mm	0.079 in	Threaded
Harwin Inc. M80-5C12605M2	24 AWG	28 AWG	Black	Jackscrews Polarizing Key	Gold	Header		0.25 Ám	10 Áin	Male Pin	Crimp	Panel Mount			Discrete	26	0.079 in	2 mm	2	2 mm	0.079 in	Threaded

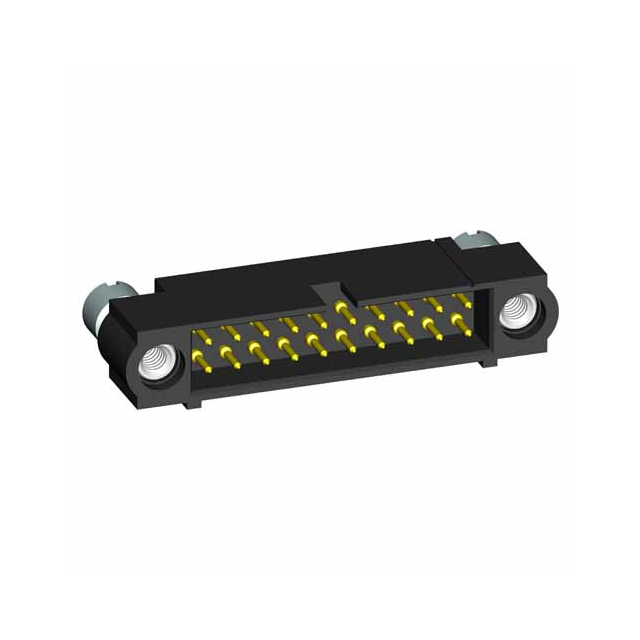

Harwin Inc. M80-5C11005M2	24 AWG	28 AWG	Black	Jackscrews Polarizing Key	Gold	Header		0.25 Ám	10 Áin	Male Pin	Crimp	Panel Mount			Discrete	10	0.079 in	2 mm	2	2 mm	0.079 in	Threaded
Harwin Inc. M80-5C12005M2	24 AWG	28 AWG	Black	Jackscrews Polarizing Key	Gold	Header		0.25 Ám	10 Áin	Male Pin	Crimp	Panel Mount			Discrete	20	0.079 in	2 mm	2	2 mm	0.079 in	Threaded
