AWH 50A Series
Manufacturer: Assmann WSW Components
Beta
⌘K

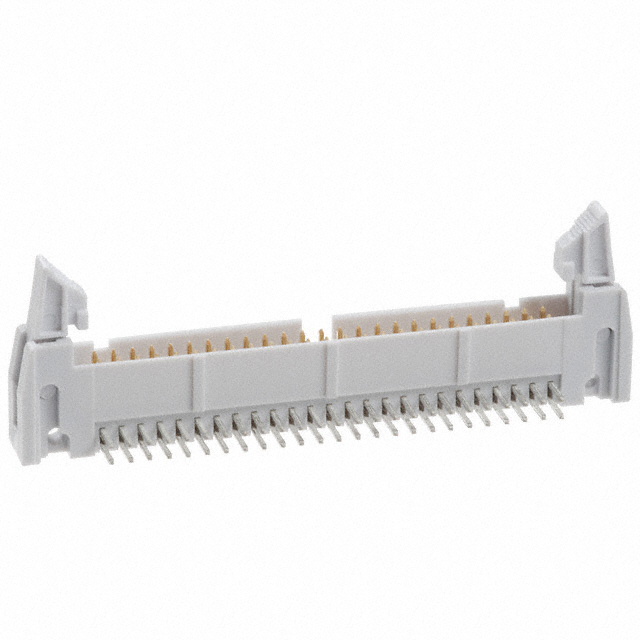

CONN HEADER R/A 50POS 2.54MM
| Part | Contact Material | Shrouding | Contact Finish - Post | Insulation Material | Contact Shape | Contact Type | Insulation Color | Connector Type | Style | Mounting Type | Current Rating (Amps) | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Material Flammability Rating | Features | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Brass | Shrouded - 4 Wall | Tin | Polybutylene Terephthalate (PBT) Glass Filled | Square | Male Pin | Gray | Header | Board to Cable/Wire | Right Angle Through Hole | 3 A | Solder | 0.1 in | 2.54 mm | -40 C | 105 ░C | 50 | UL94 V-0 | Keying Slot | 2 | 0.1 " | 2.54 mm | Latch Lock/Eject Hooks | 17 mm | 0.669 in | All | Flash | Gold | 3.81 mm | 0.15 in |
