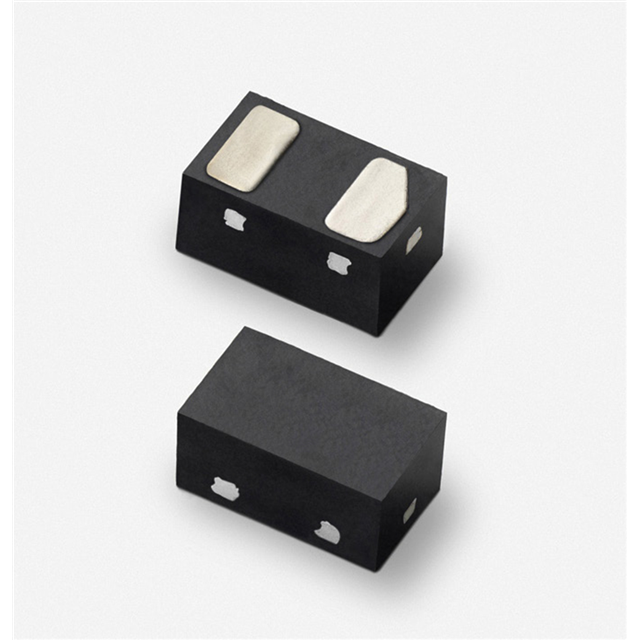

SC1210-01ETG Series

Catalog

5V 15A 30KV SOD882 BI-DIR TVS/ TR

Part	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Applications	Mounting Type	Type	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Clamping (Max) @ Ipp	Power Line Protection	Bidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)
Littelfuse/Commercial Vehicle Products SC1210-01ETG	26 pF	15 A	General Purpose	Surface Mount	Zener	SOD-882	5.2 V	125 °C	-40 °C	SOD-882	11 V		1	5 V

• ESD, IEC 61000-4-2, ±30kV contact, ±30kV air

• EFT, IEC 61000-4-4, 40A (5/50ns)

• Lightning, 15A (8/20μs as defined in IEC 61000-4-5 2nd edition)

• Low leakage current of 0.02μA (TYP) at 5V

• Halogen free, lead free and RoHS compliant

• Moisture Sensitivity Level (MSL -1)
